Pinewood Court, SW4
Contract Administrator: Squarepoint Ltd.
Sector: Residential
Project Value: £285,000
Duration: 15 weeks
Project Overview

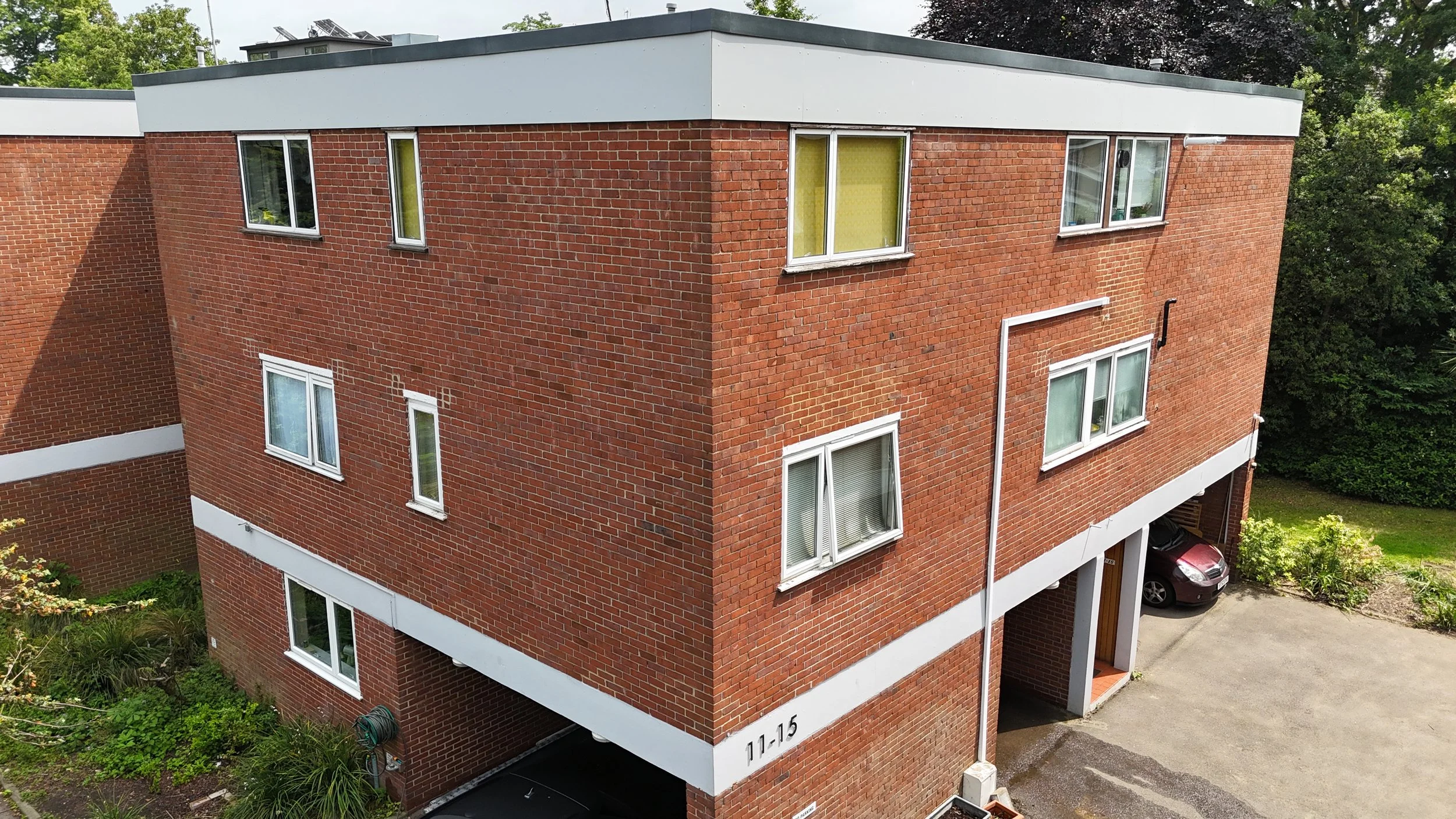

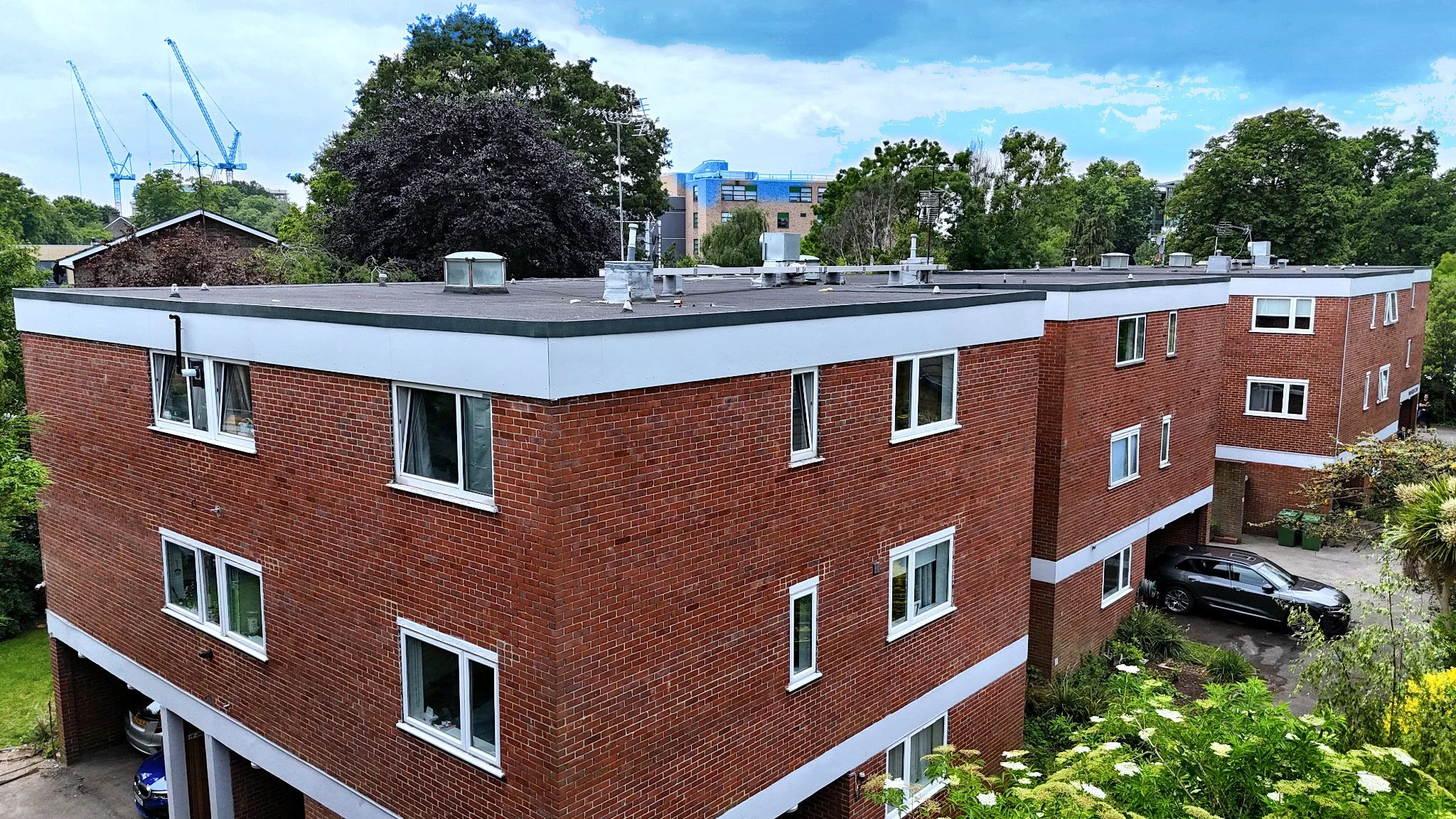

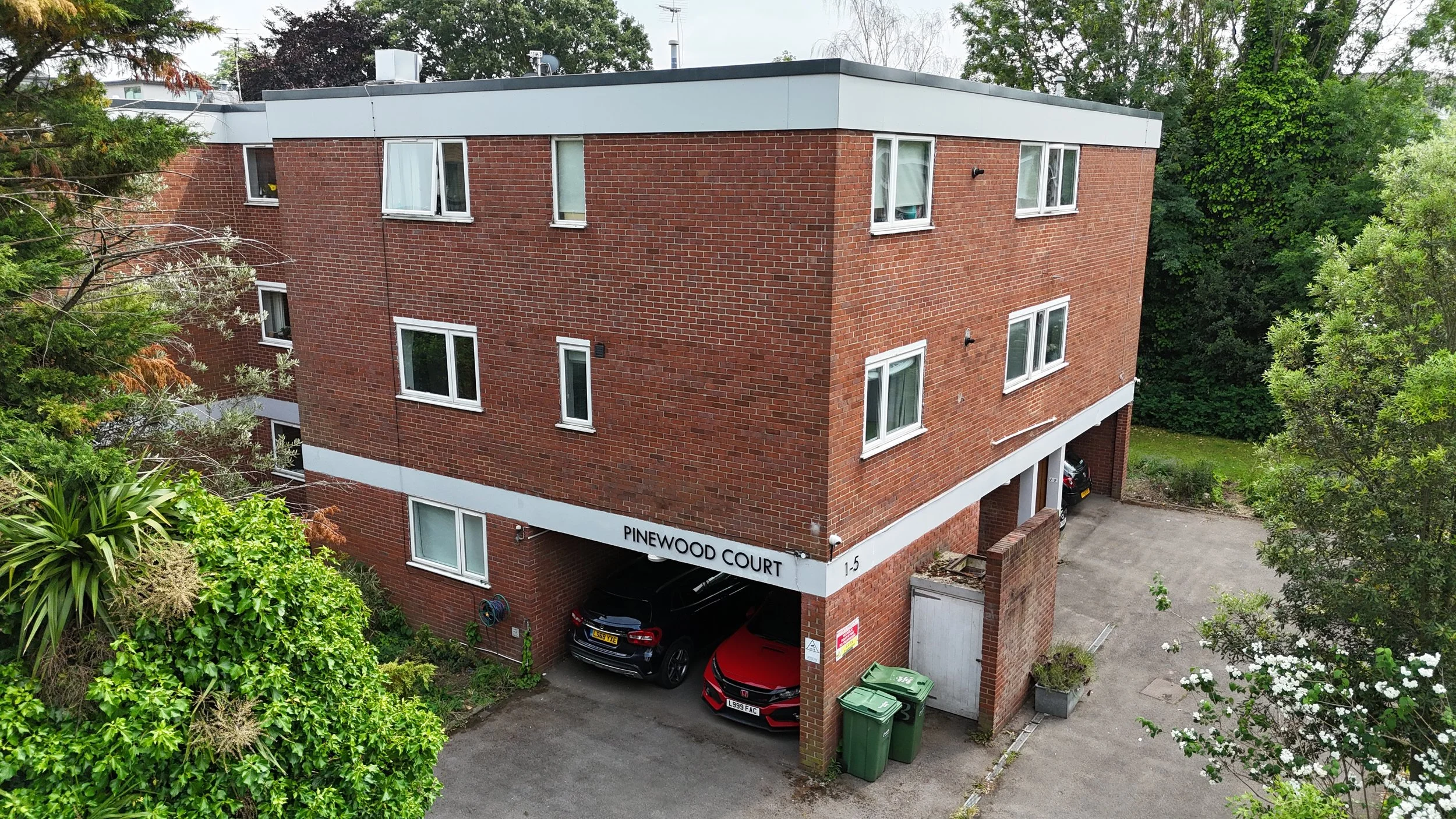

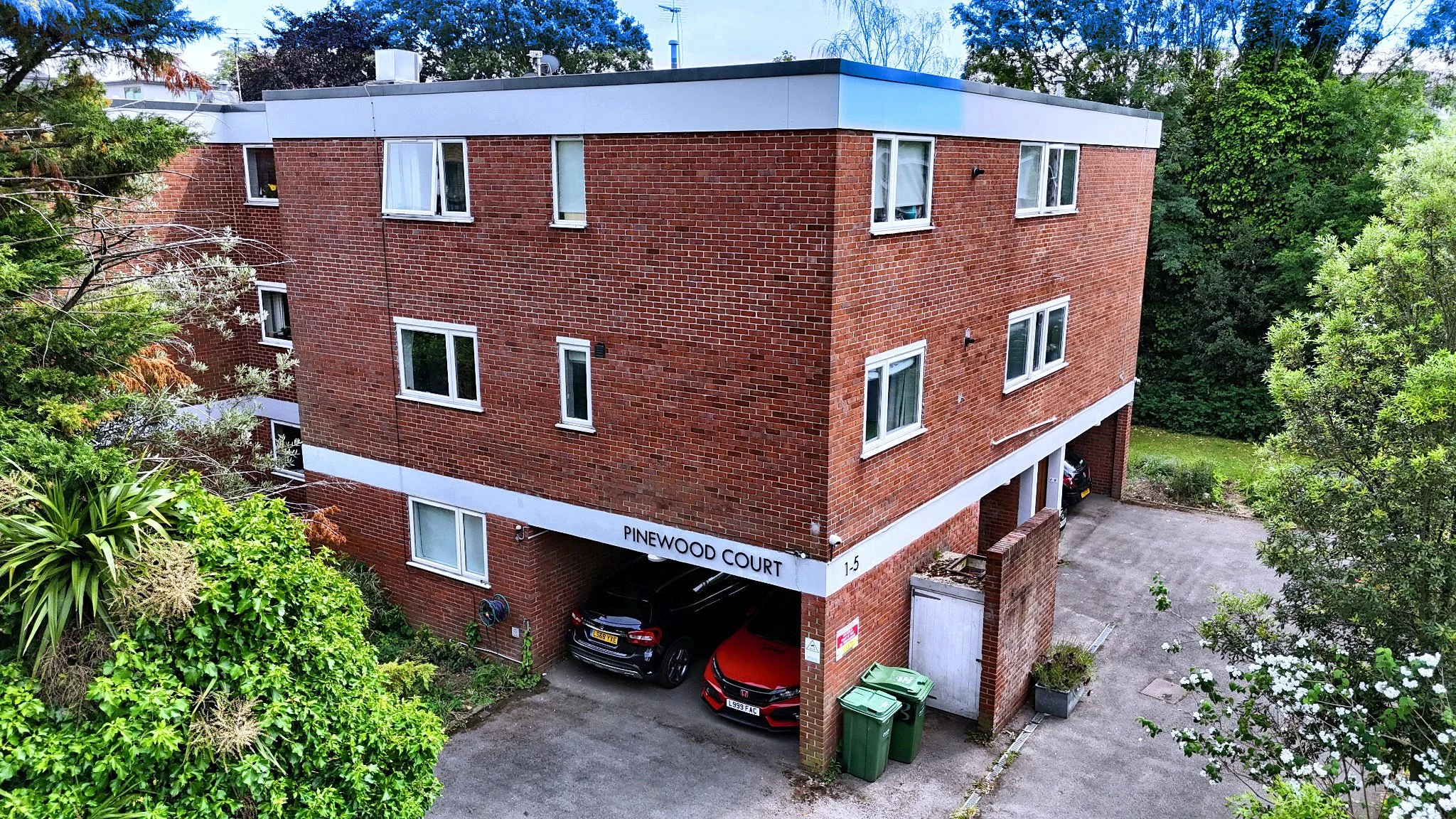

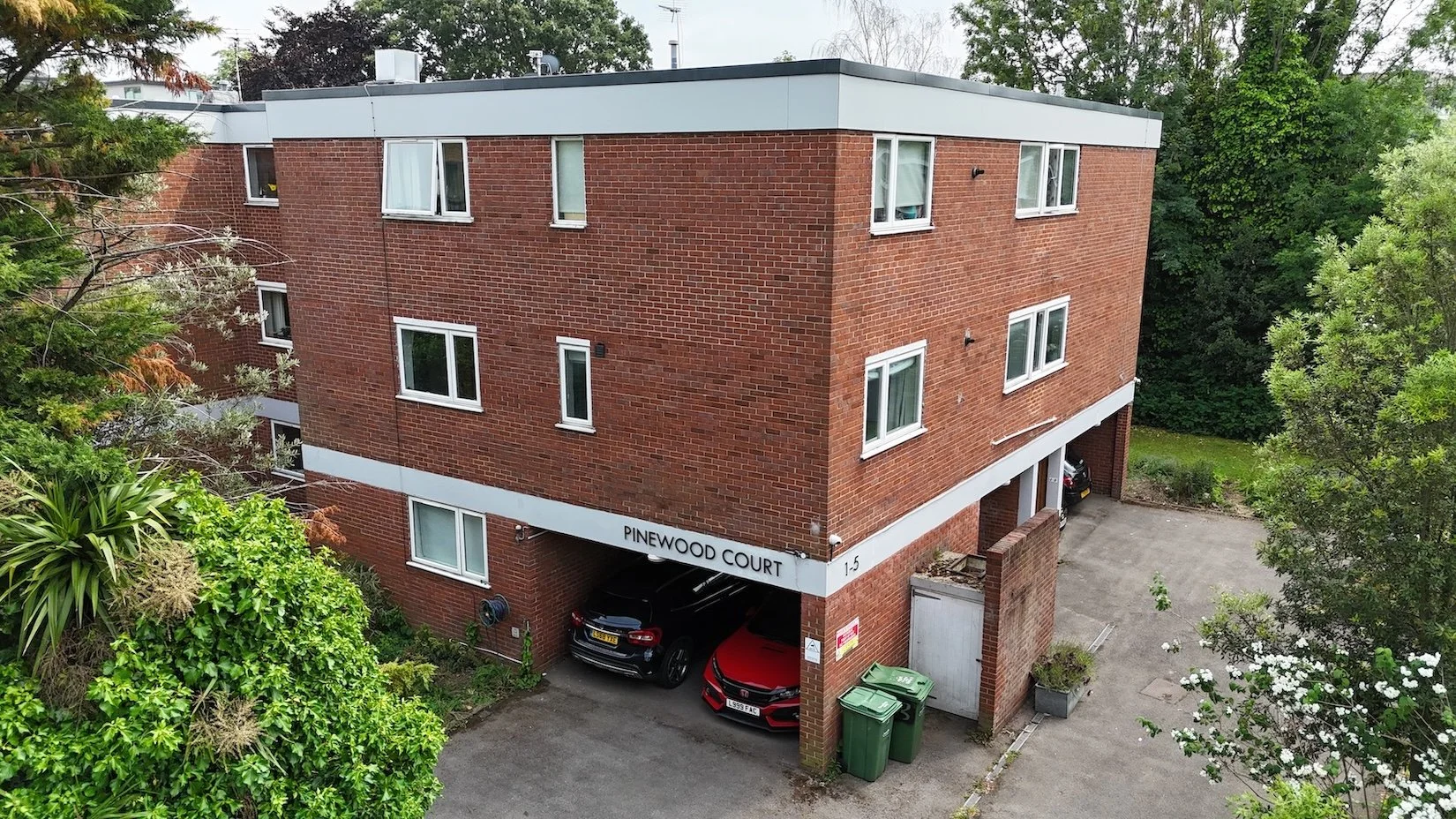

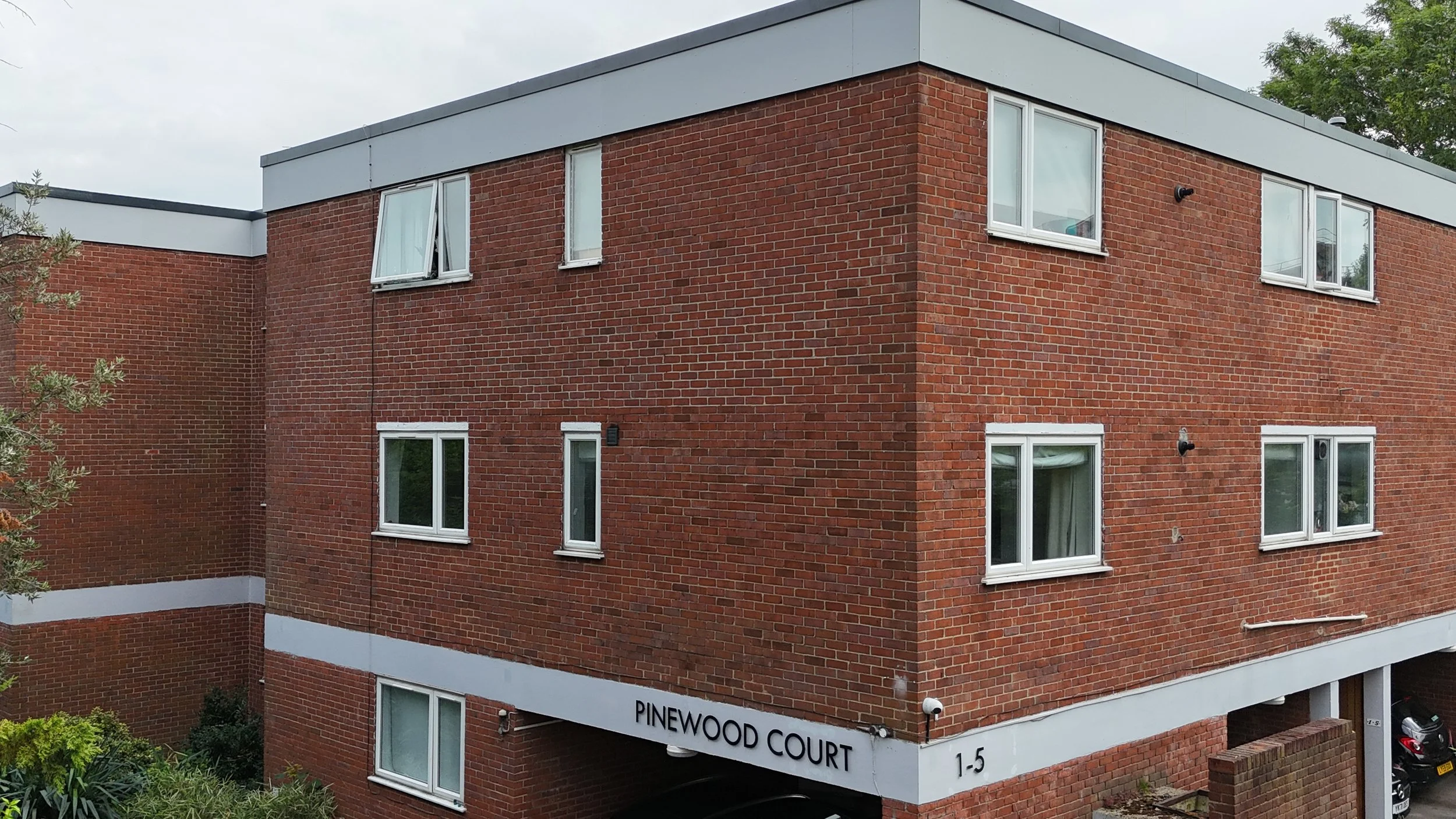

External refurbishment and structural upgrade of two three-storey residential apartment blocks at Pinewood Court, Clapham, containing 23 apartments — improving structural integrity, upgrading the façade and resolving damp ingress through a major asbestos removal and overcladding scheme carried out to strict HSE guidelines. A full perimeter scaffold to both blocks was designed specifically to allow the safe removal of asbestos-containing materials, after which Arden installed a Z-bar cladding framing system and approximately 200m² of Equitone cladding boards, with new flat-roof felt interfaced to the new system. Repairs to concrete lintels, cills and substrate were carried out prior to overcladding, and approximately 140m² of new silicone render applied to eight high-level balconies. Arden returned to renew the blocks’ entrances and lobbies as a further phase, following an earlier investigation into the cause and extent of the defects.
Scope of works

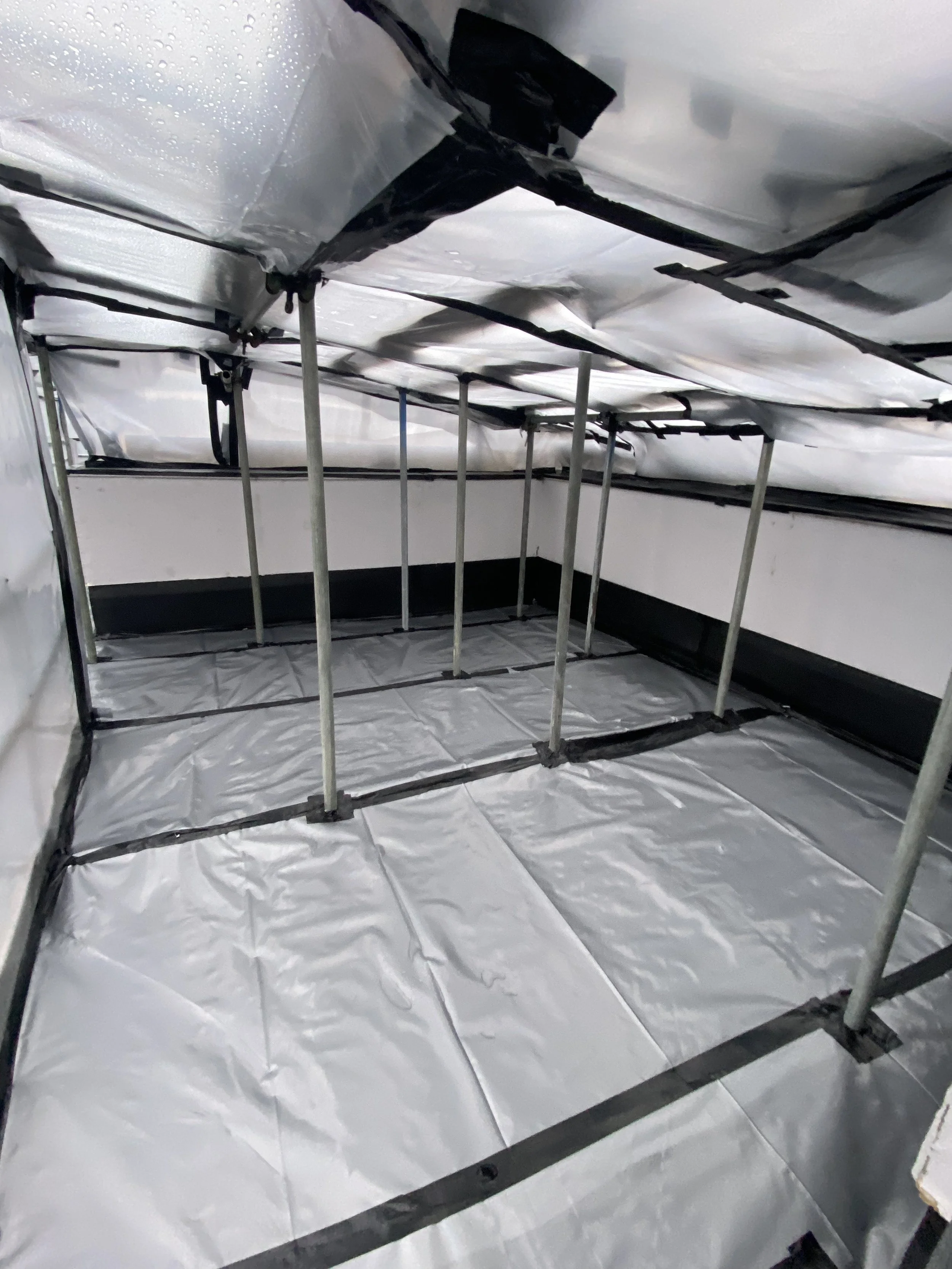

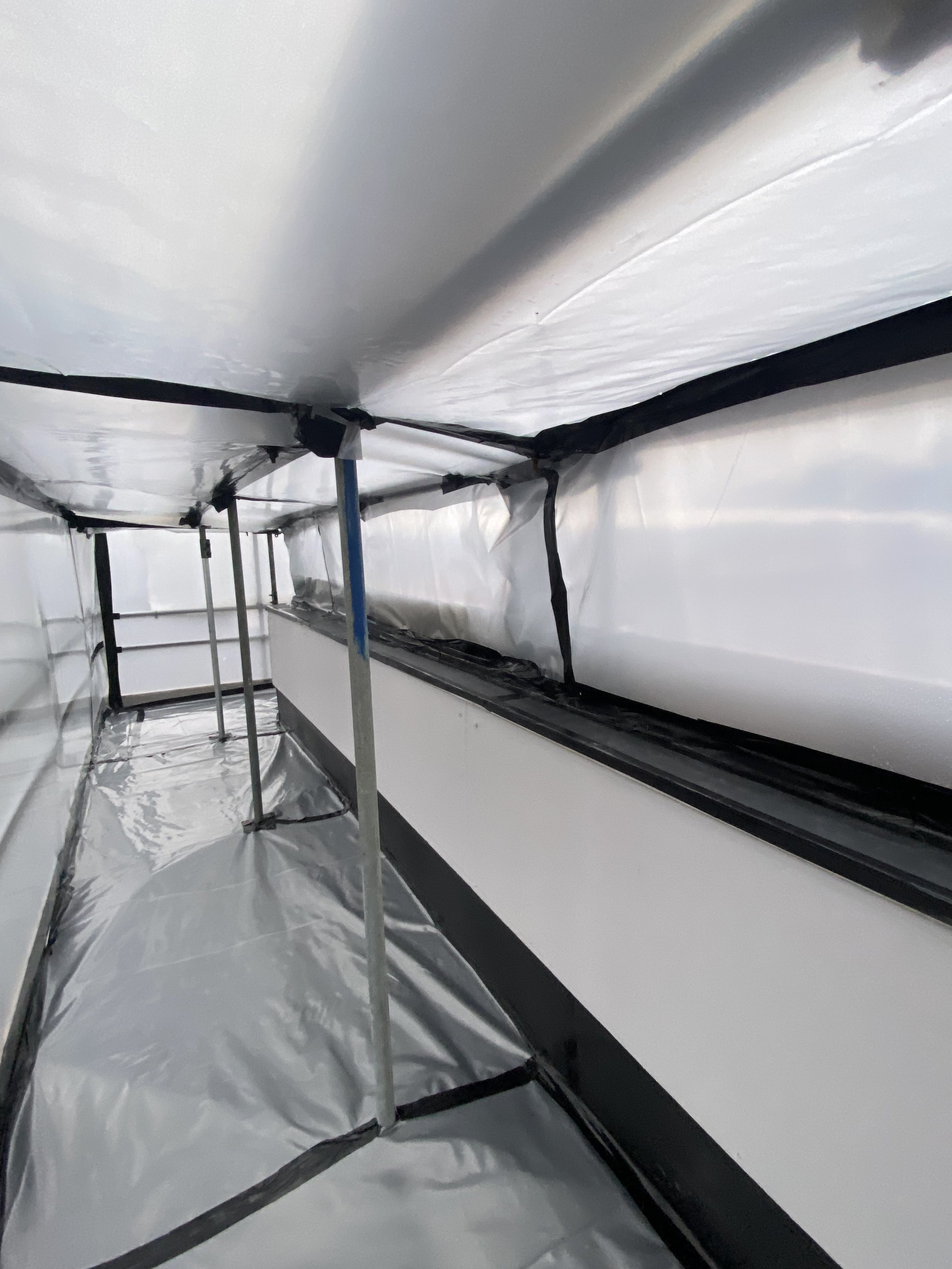

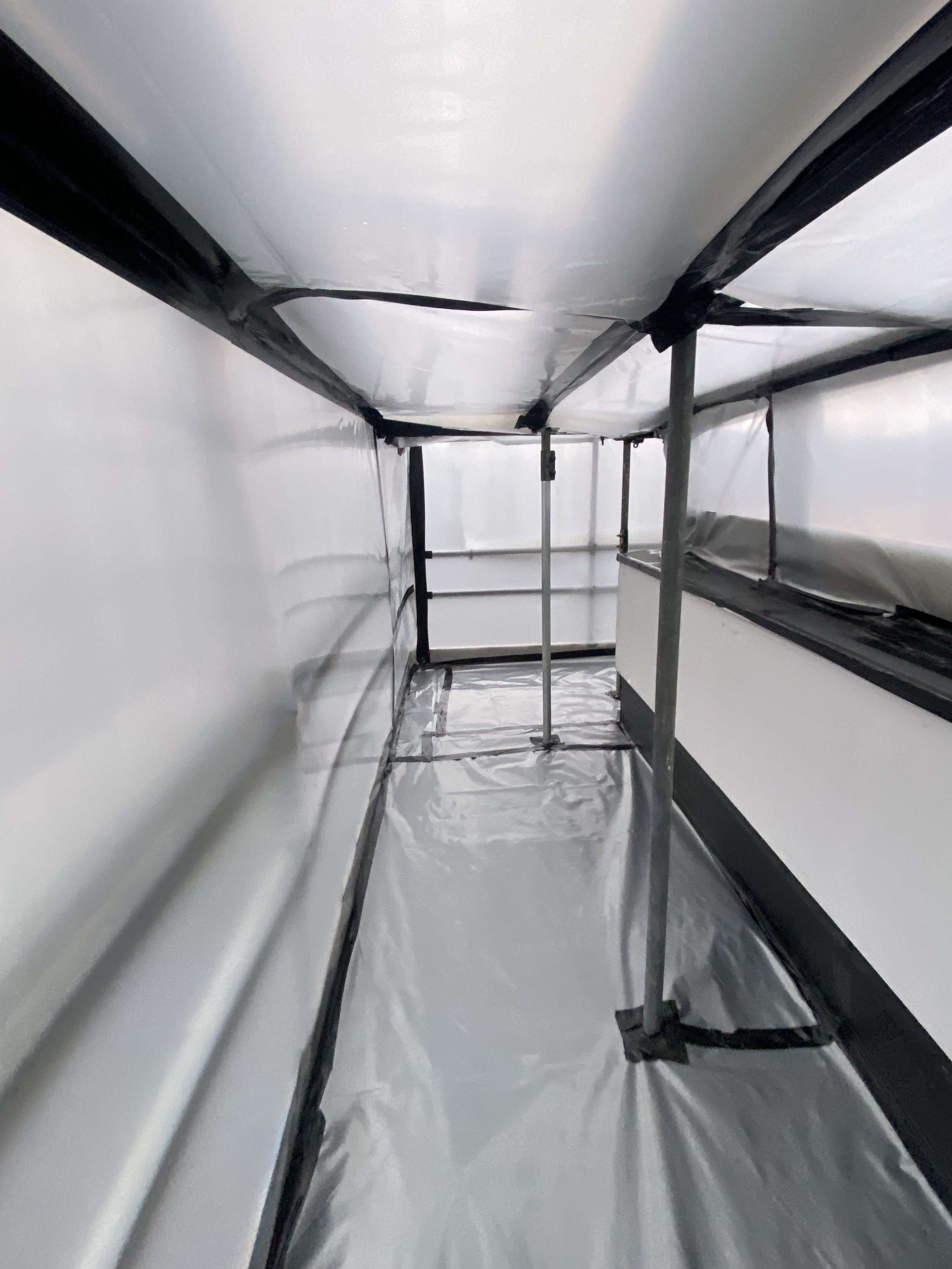

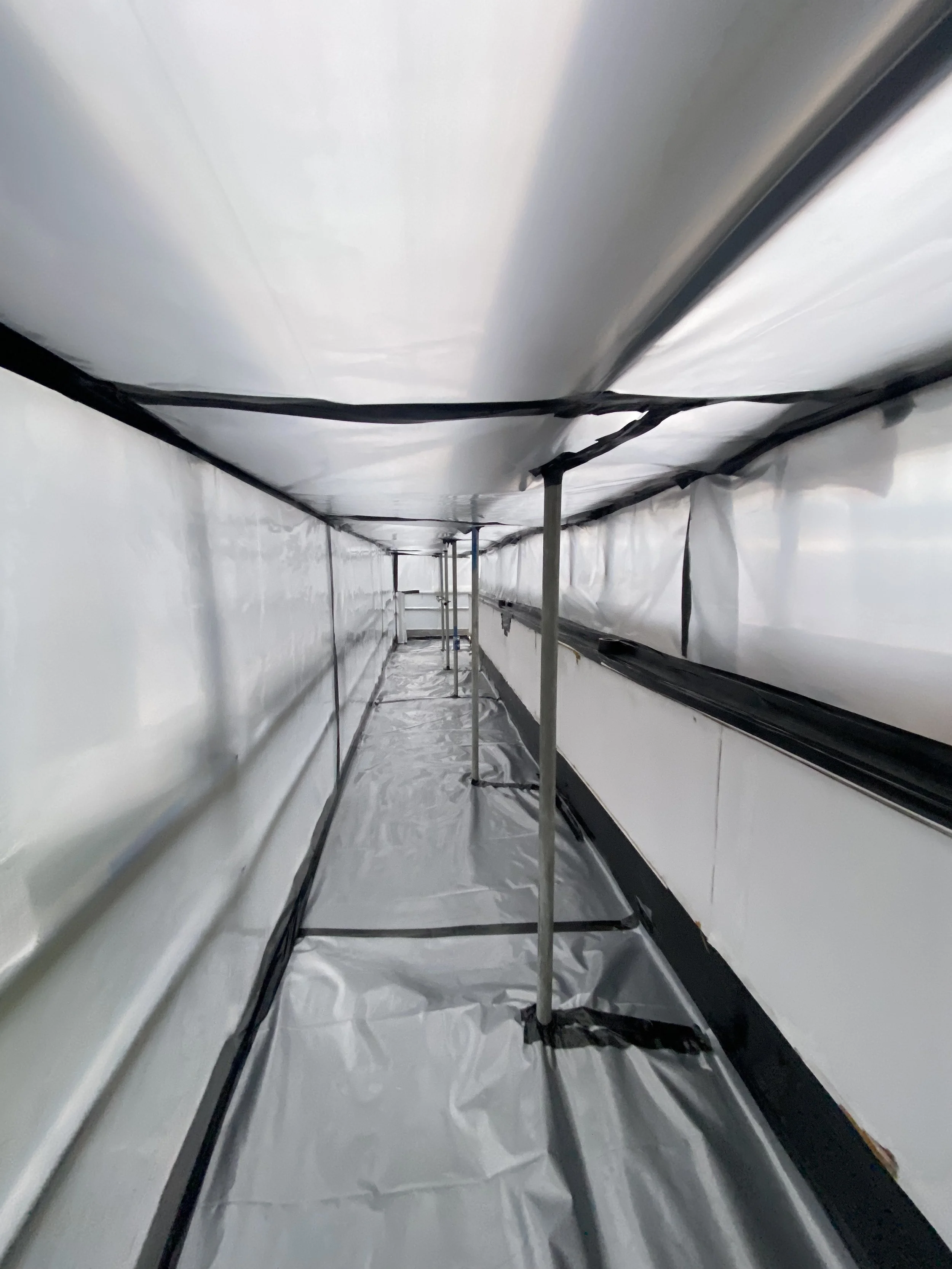

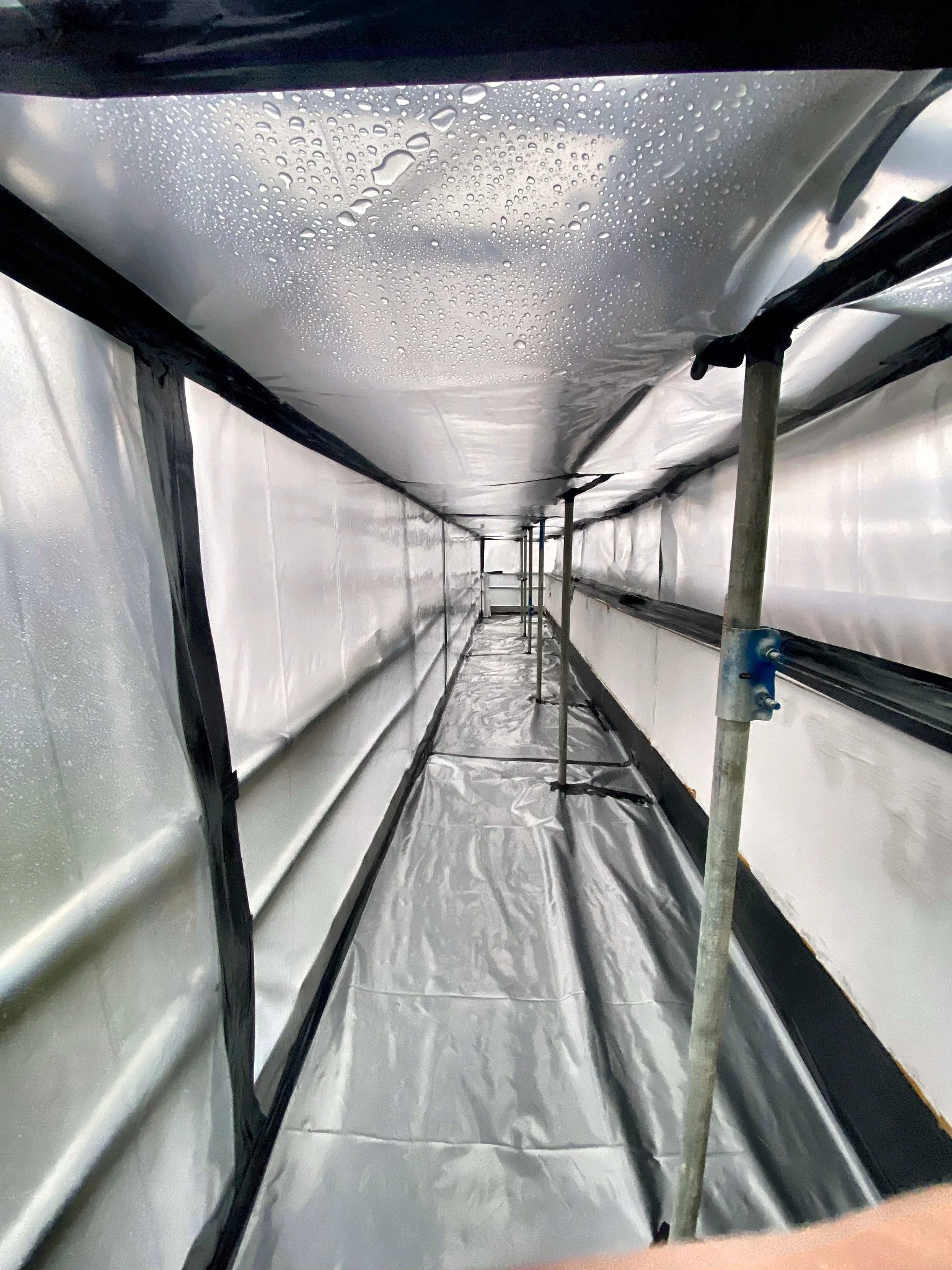

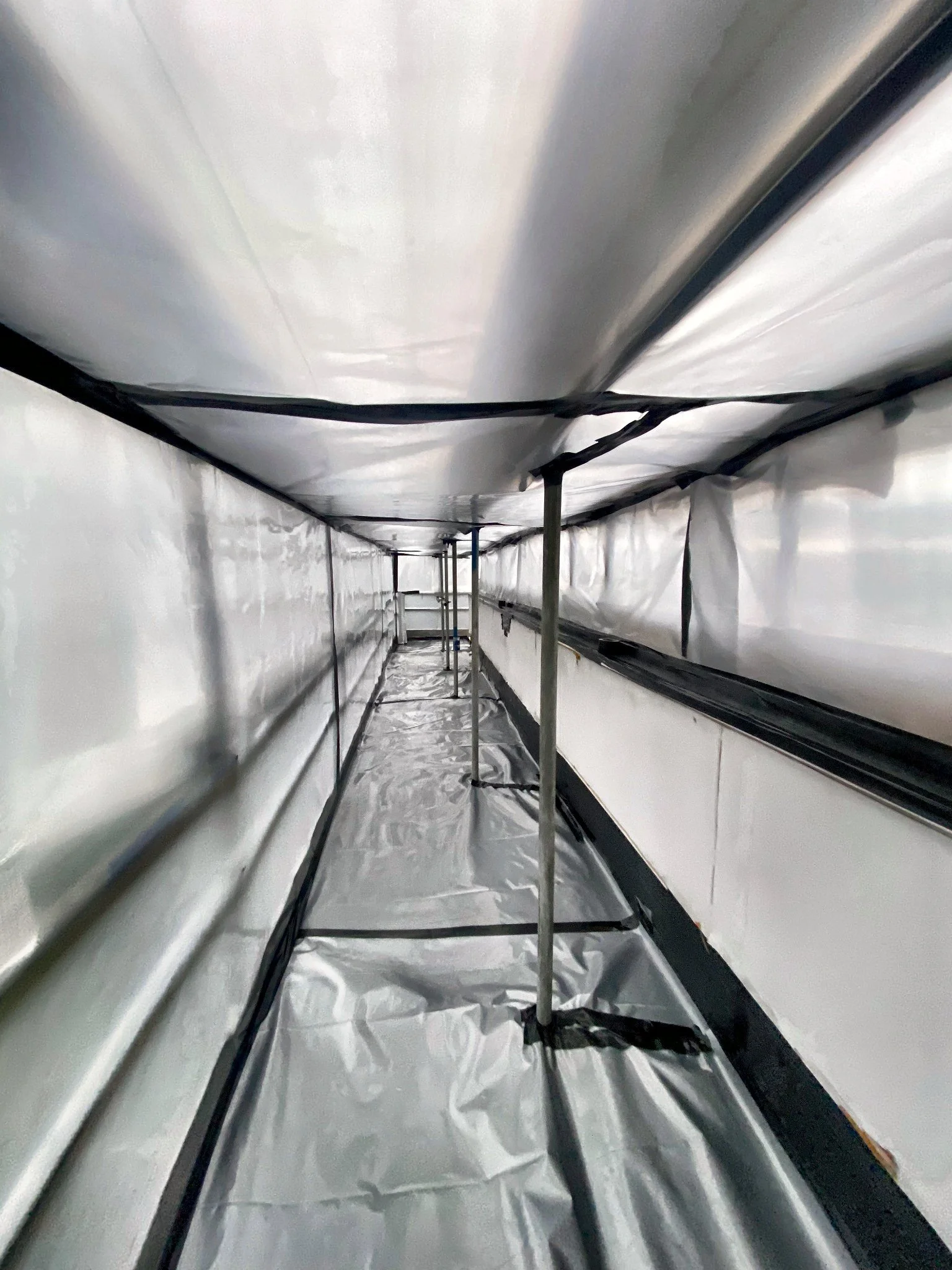

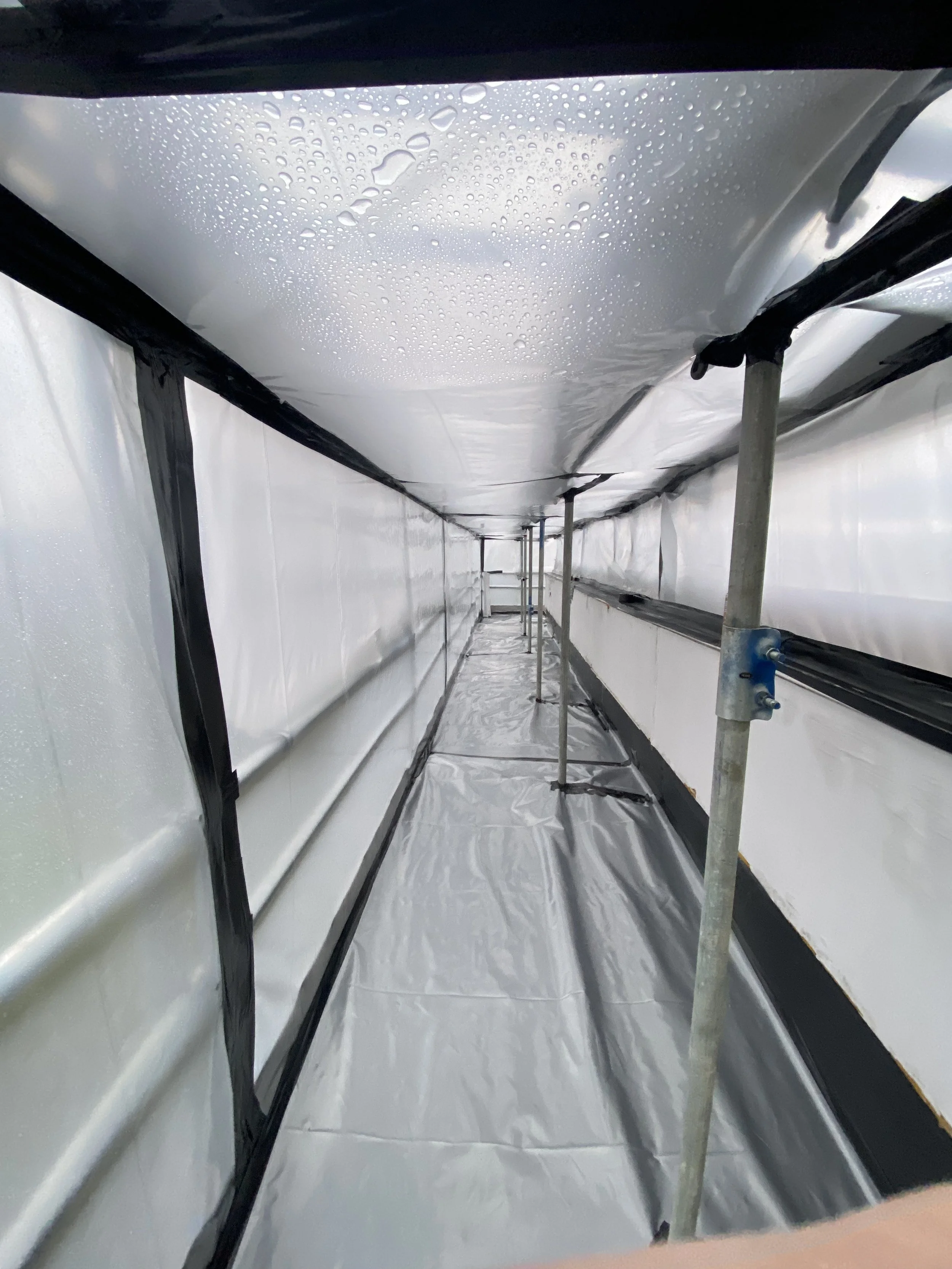

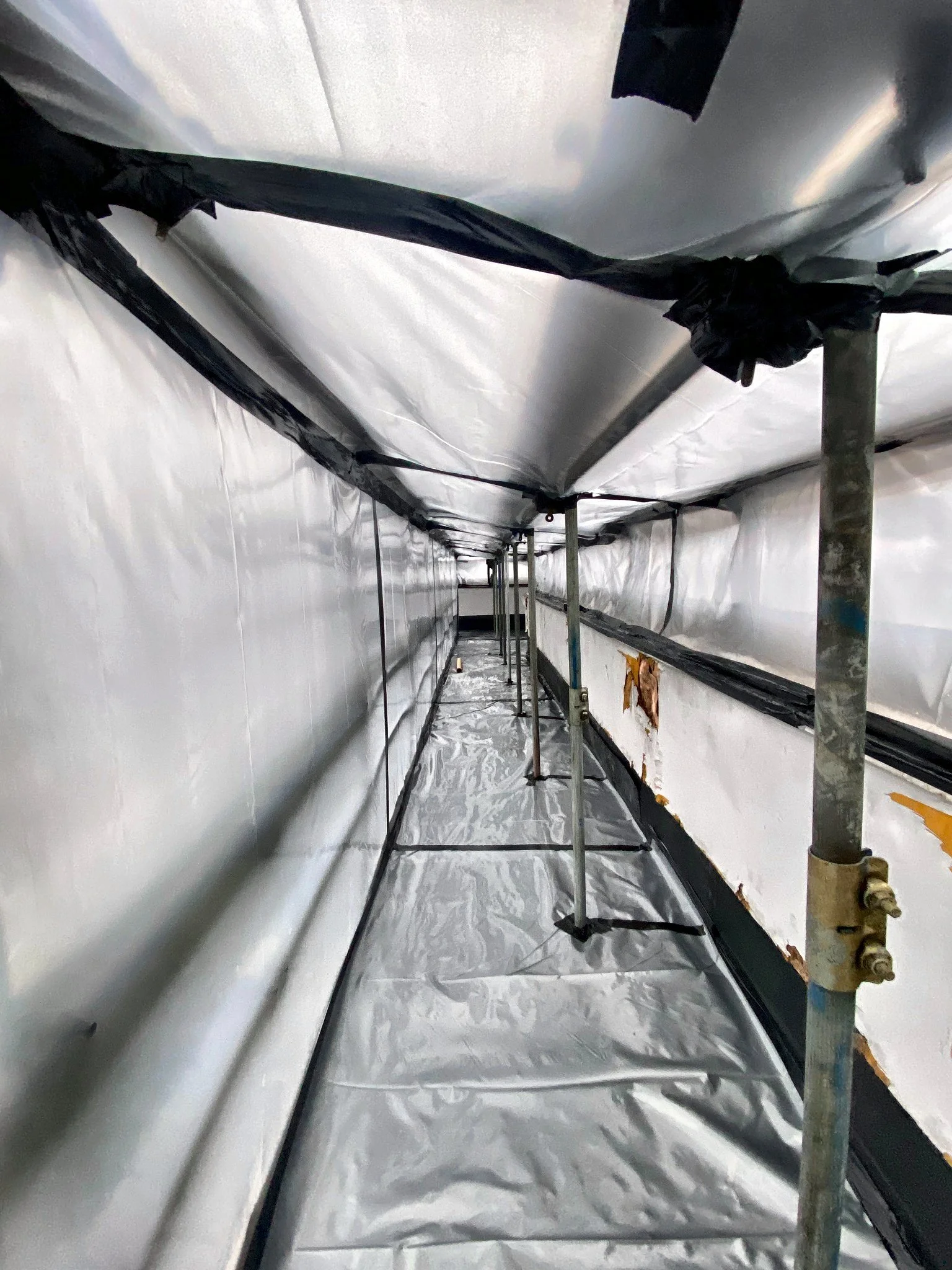

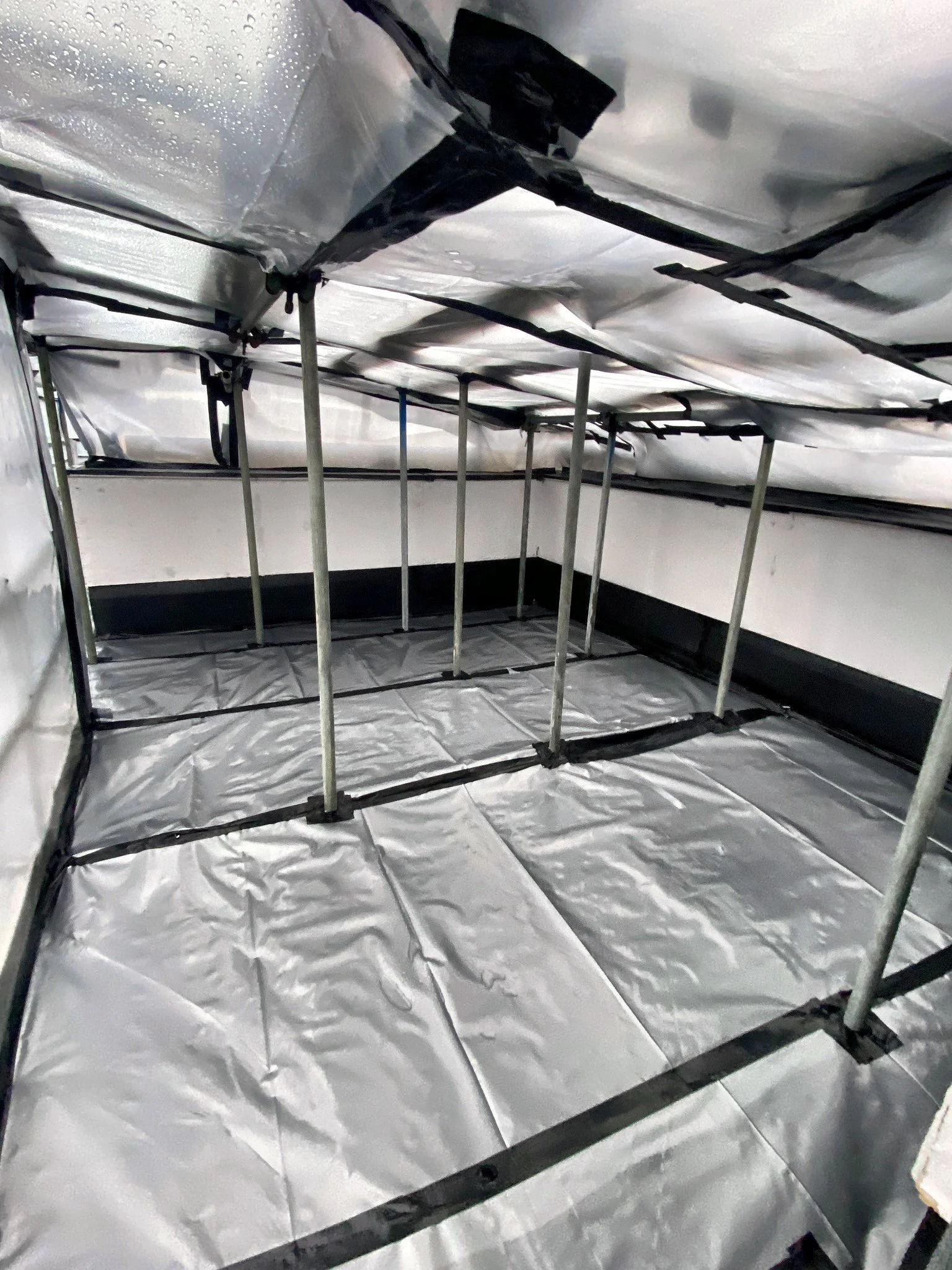

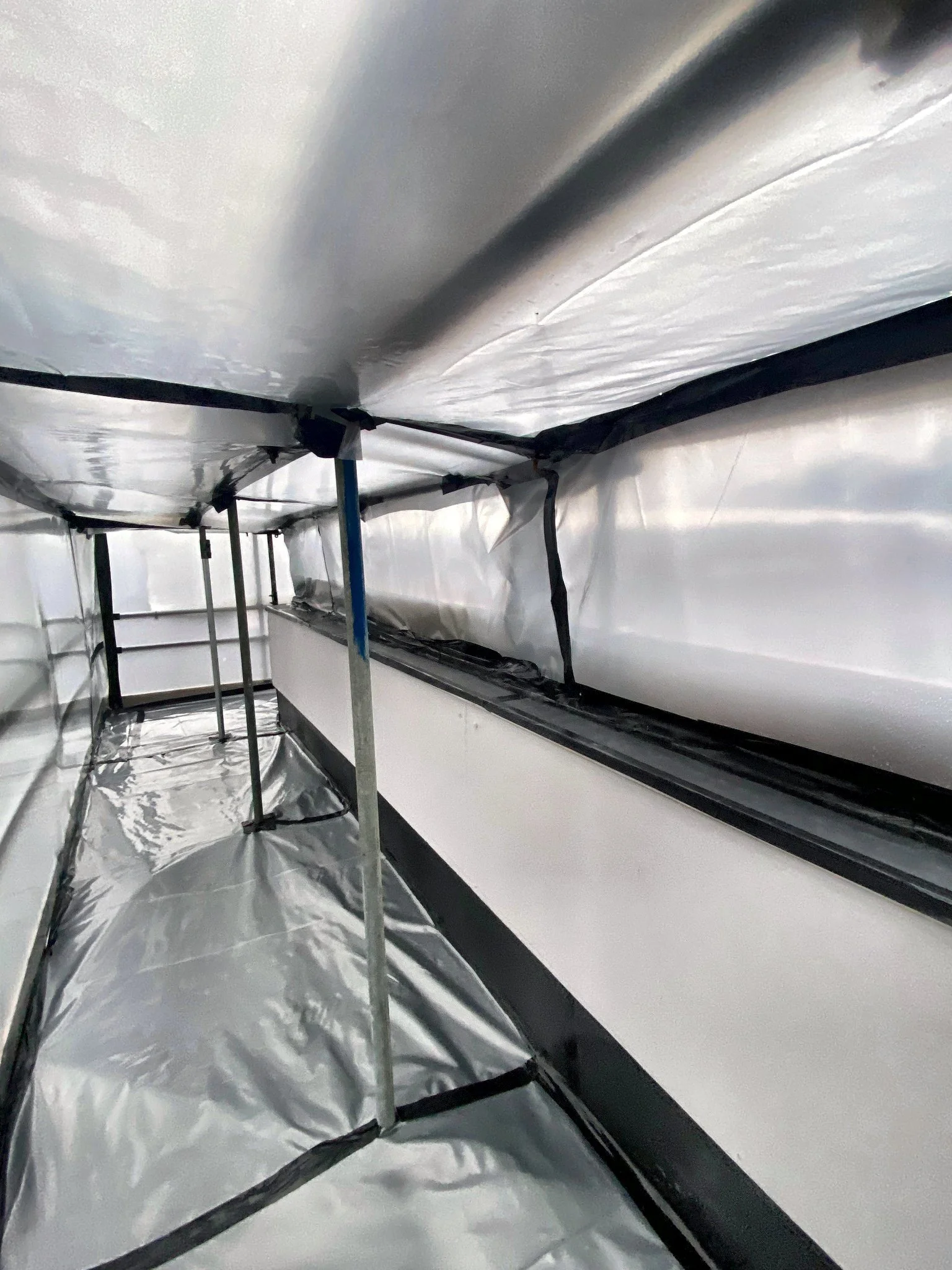

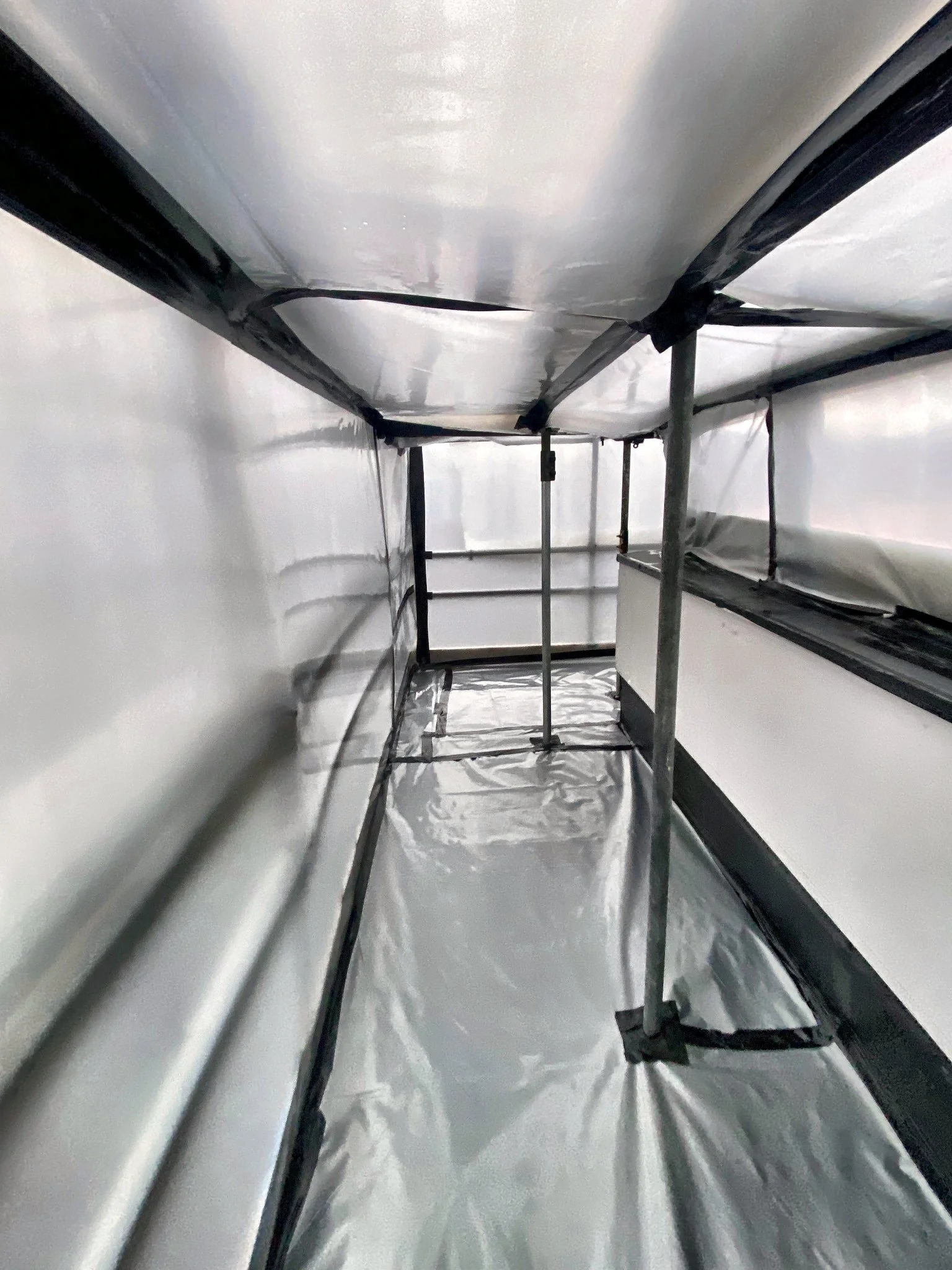

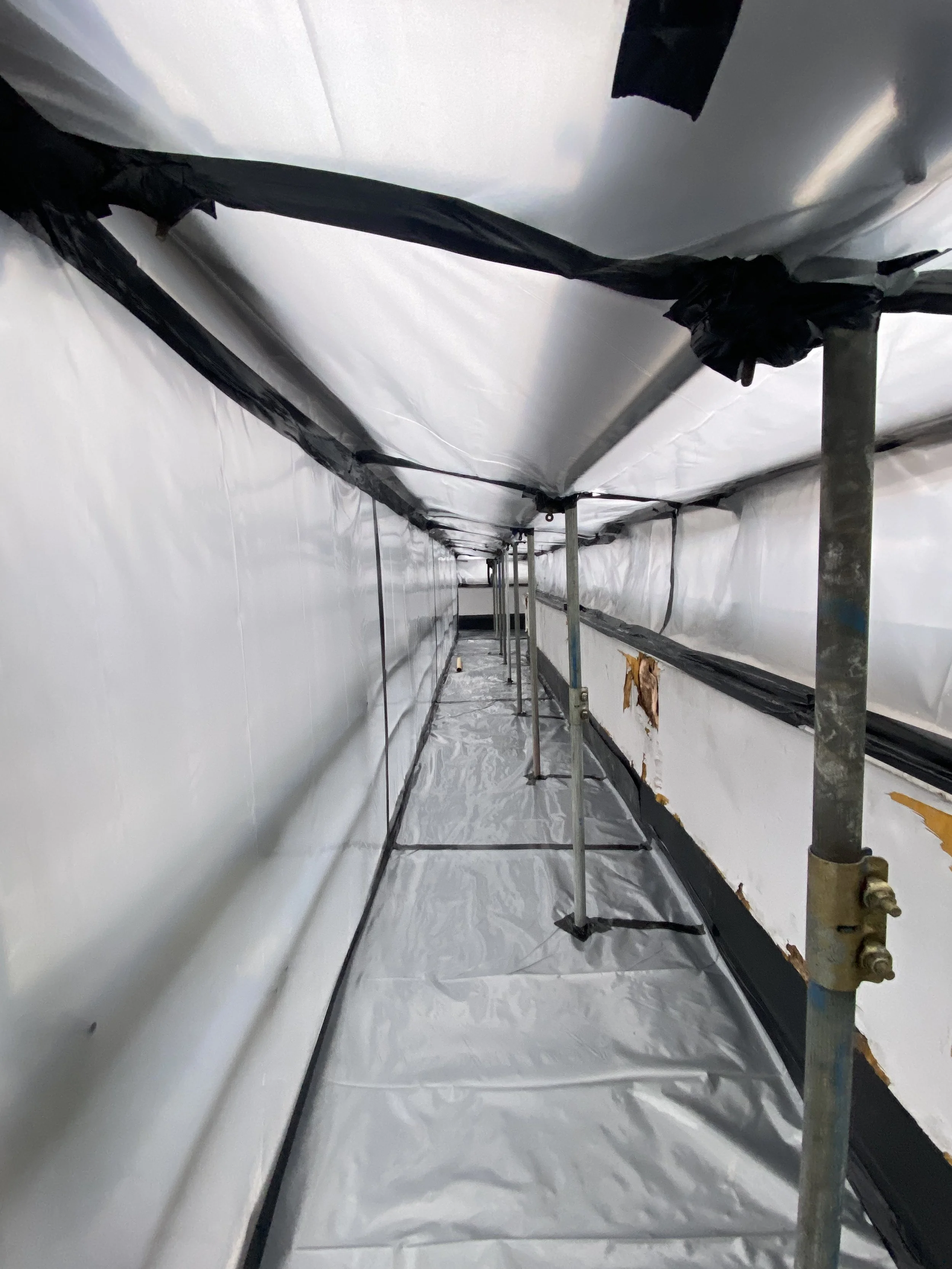

Full perimeter scaffold to both blocks, designed for the safe removal of asbestos-containing materials

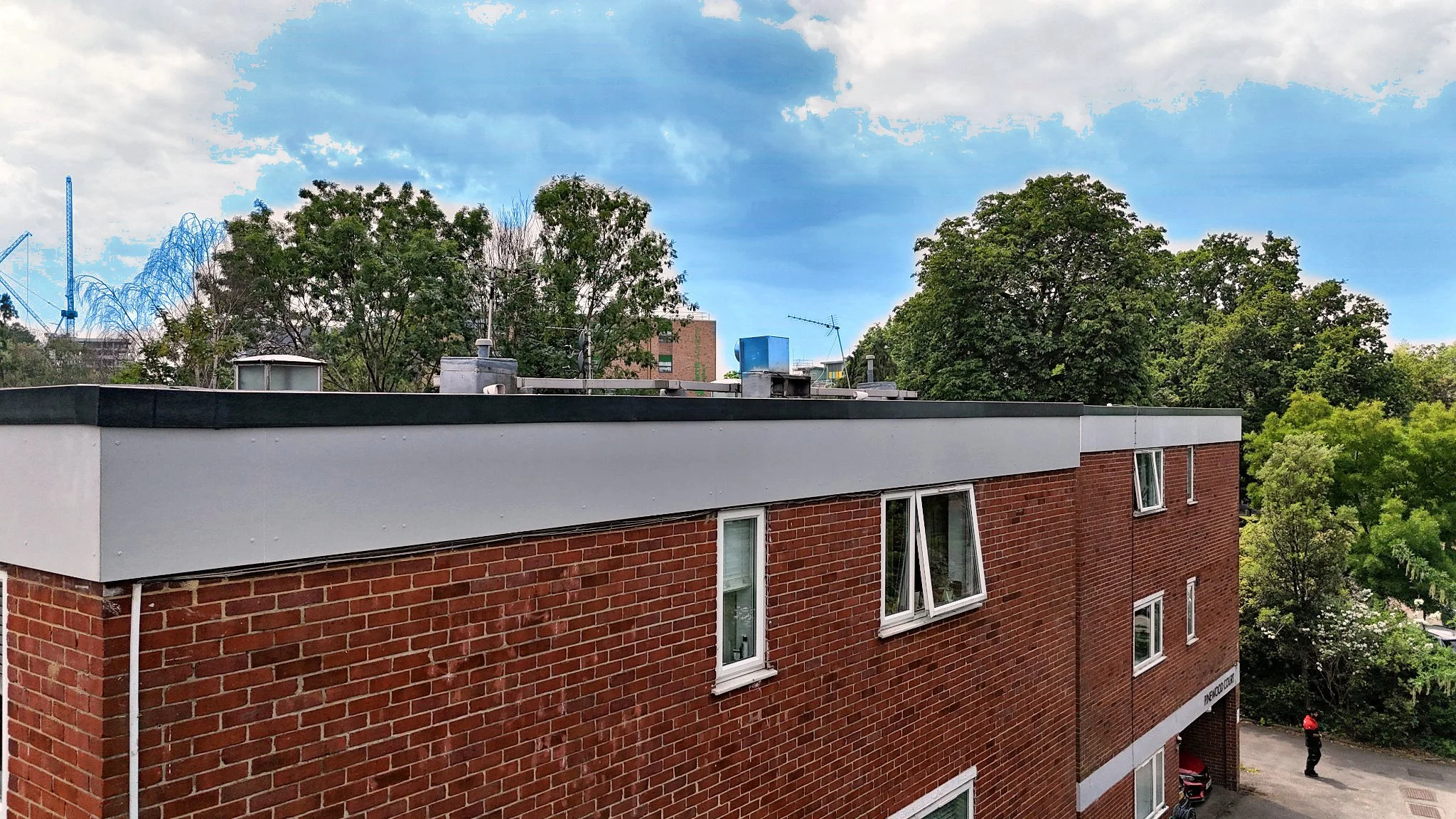

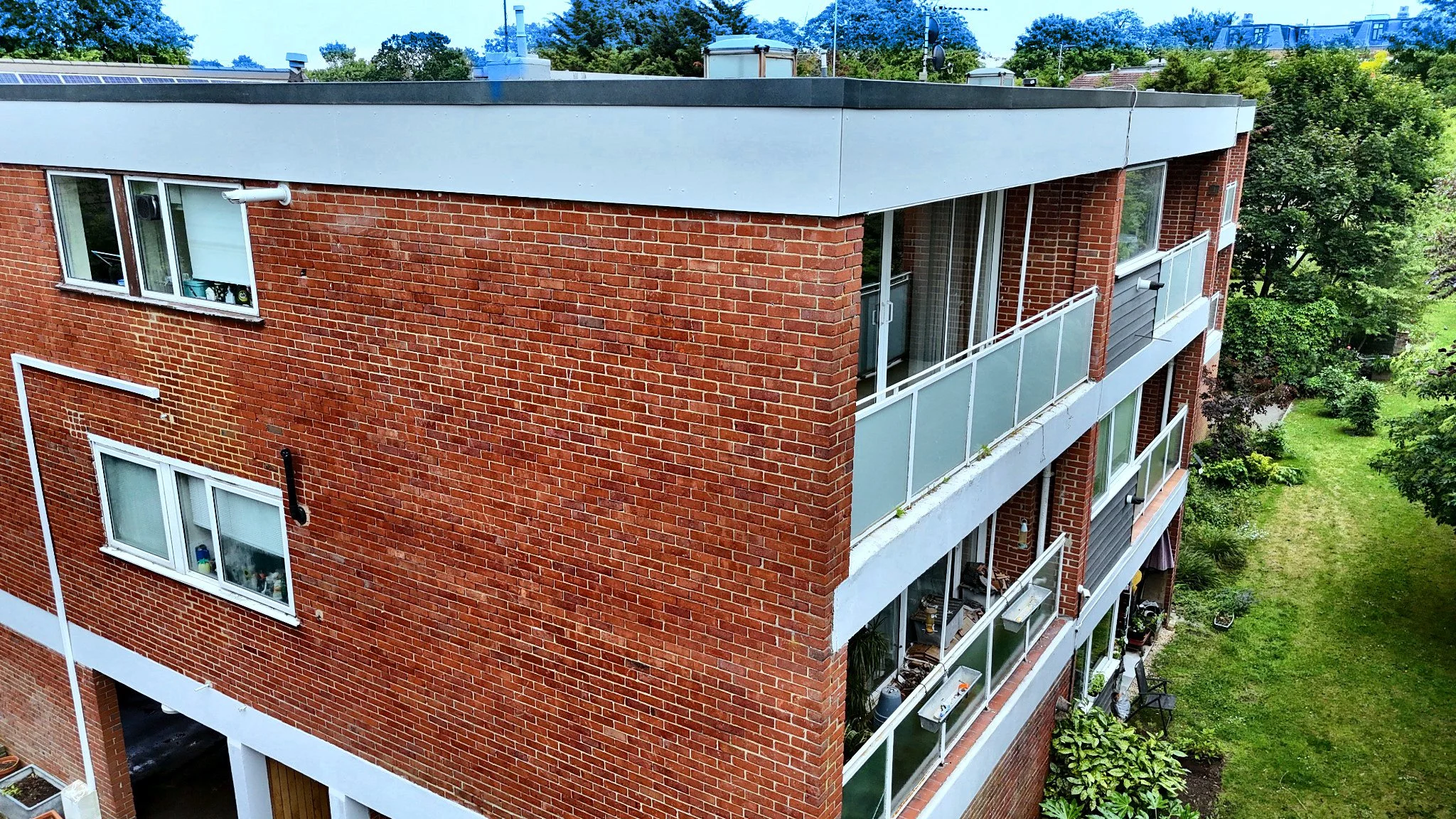

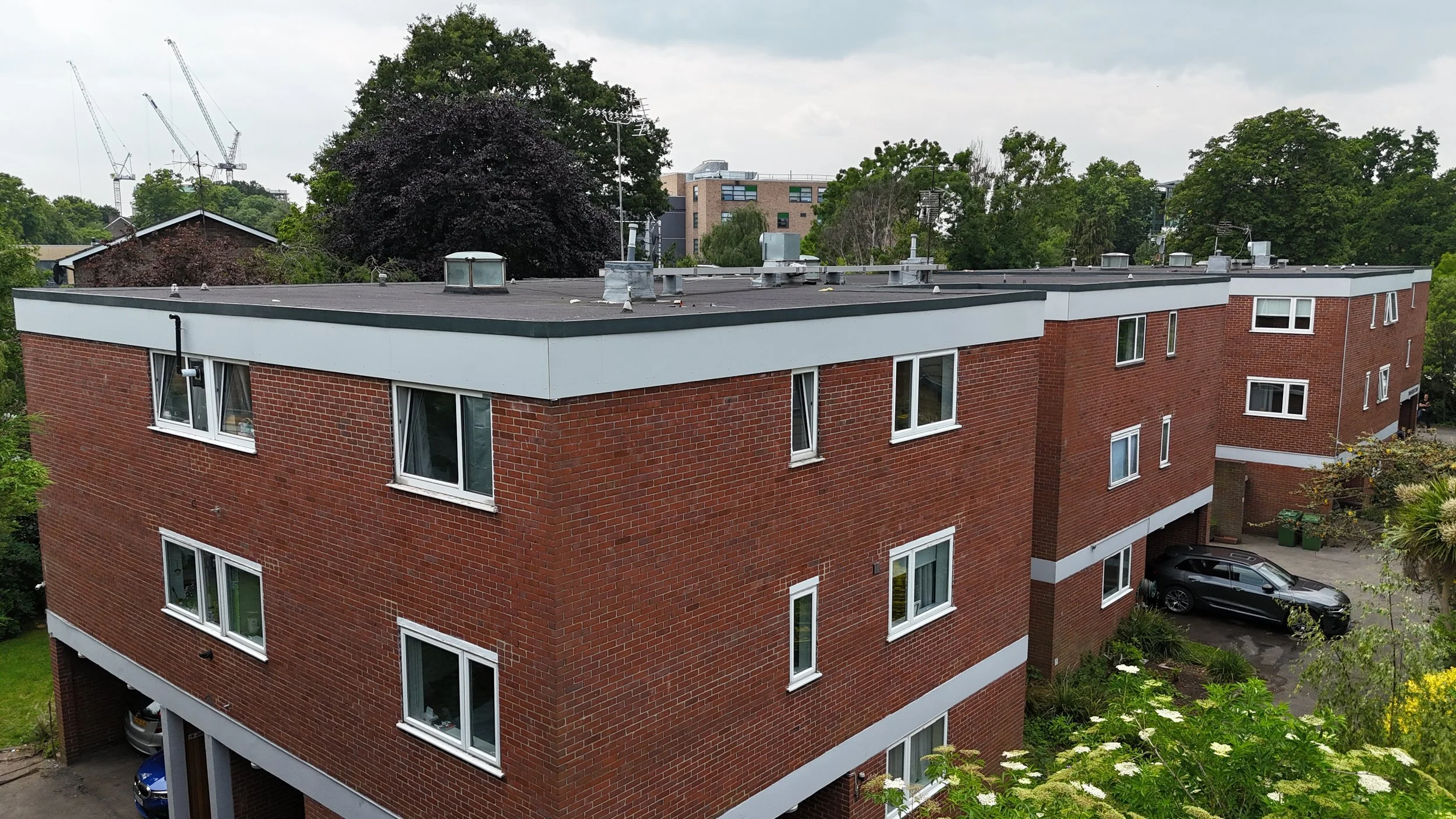

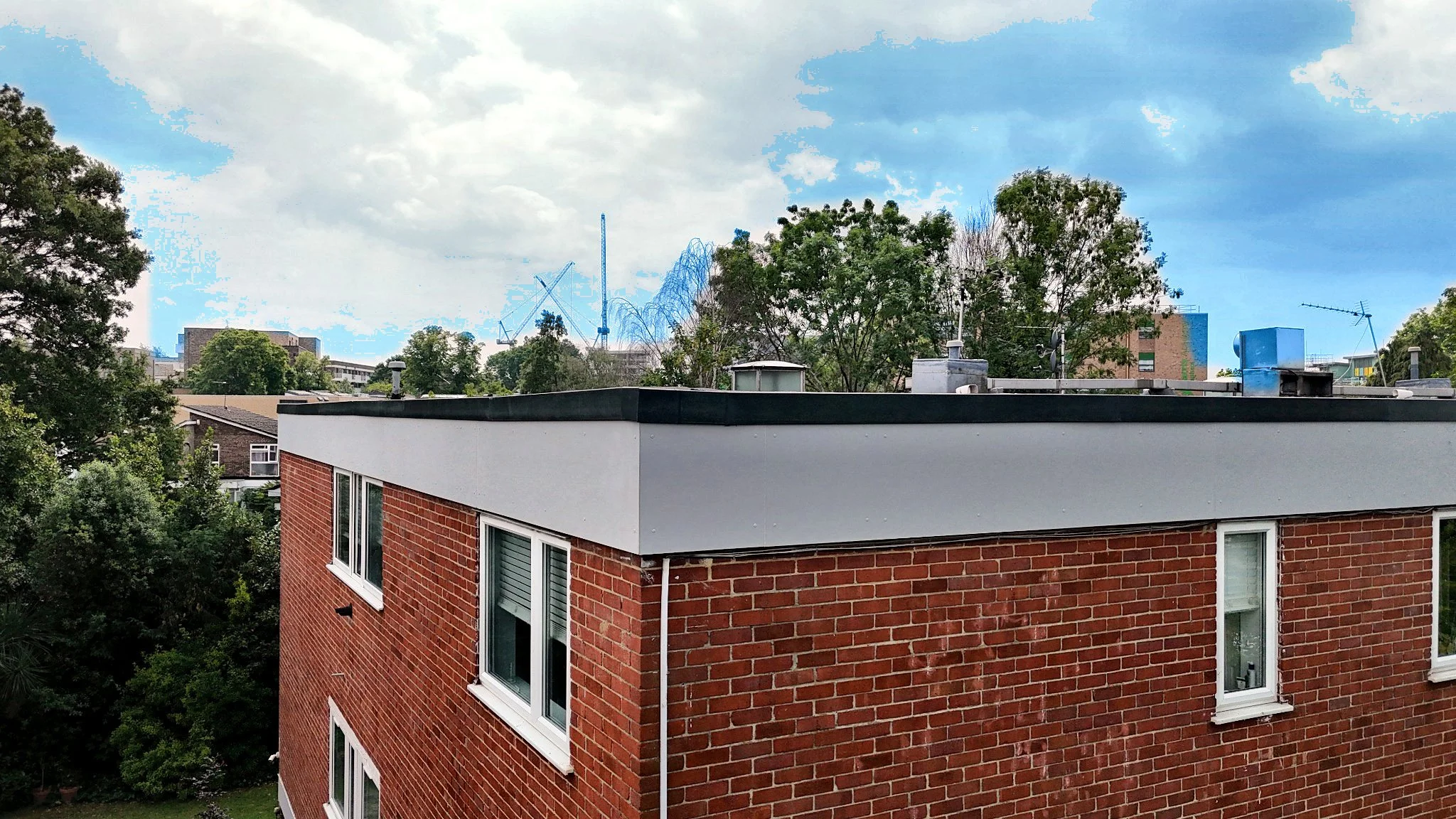

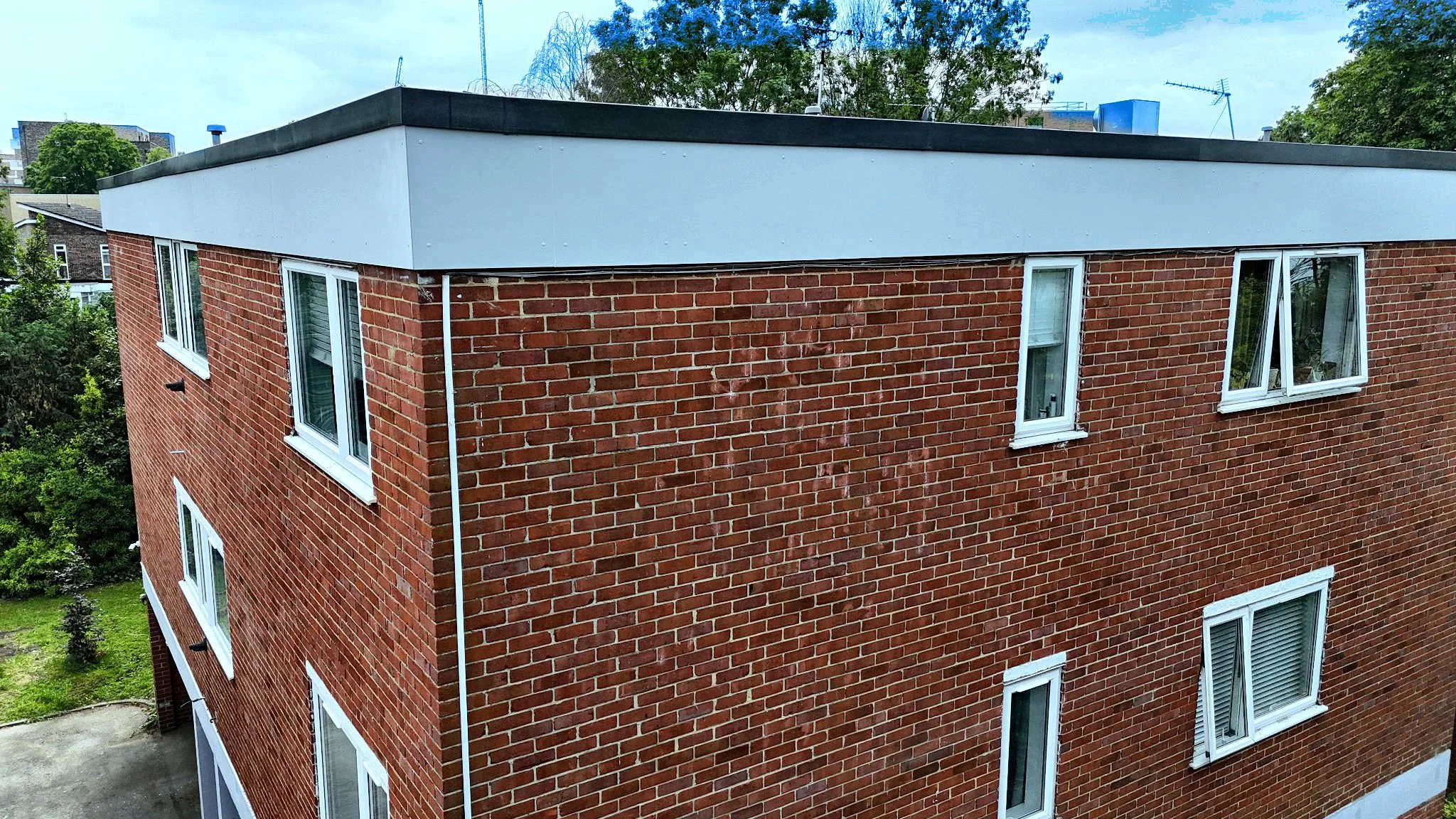

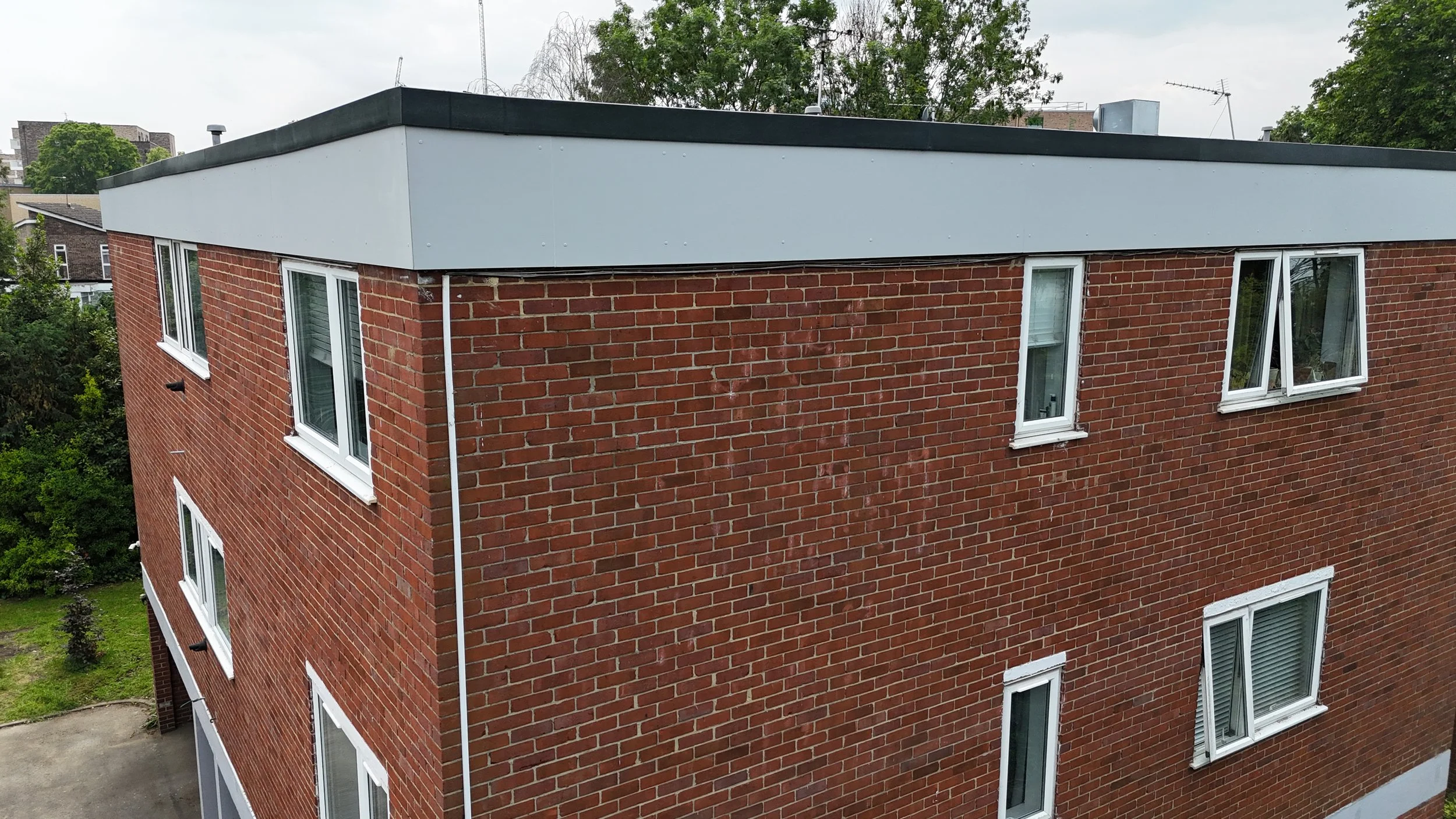

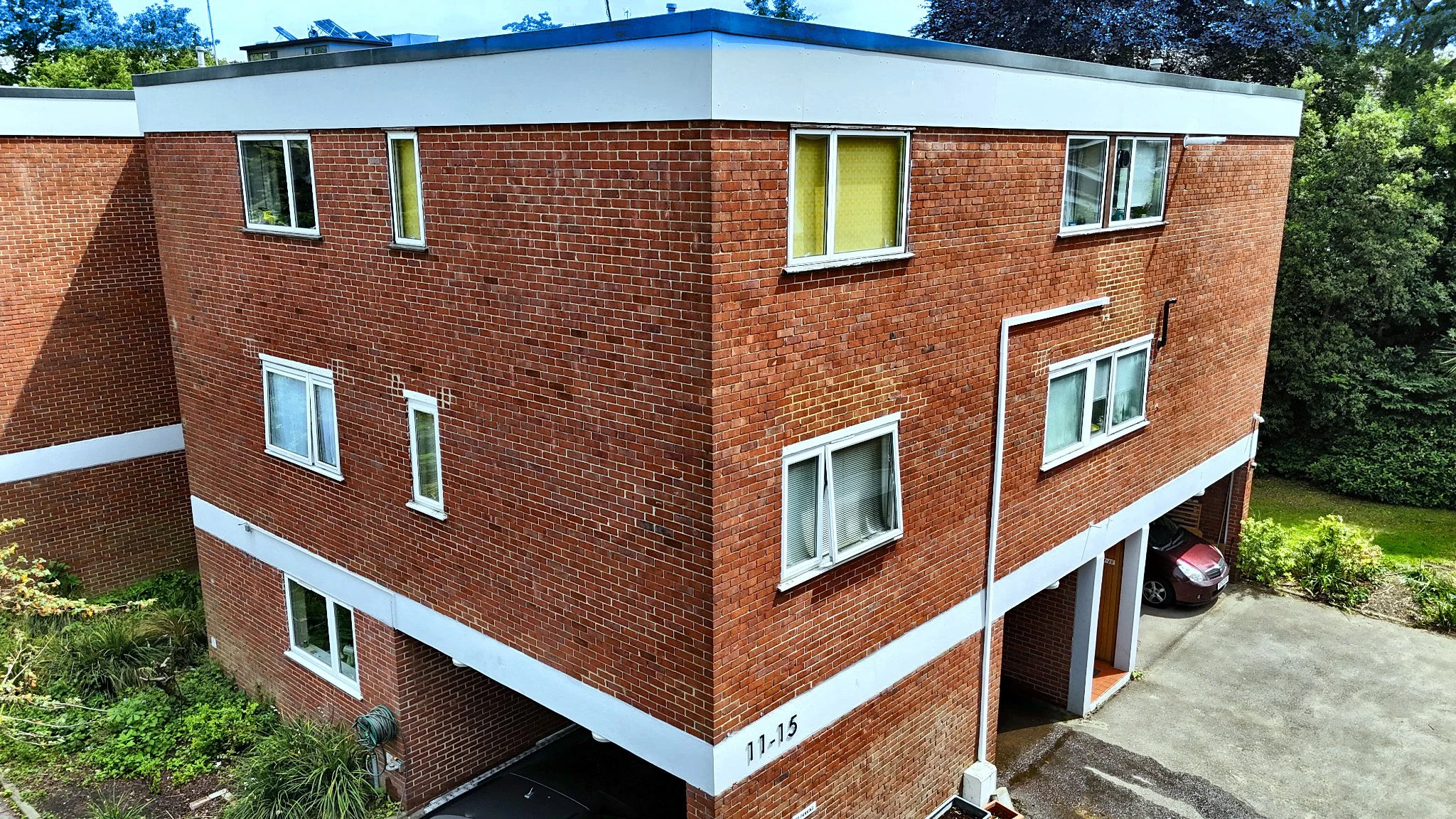

Z-bar cladding framing system to the full perimeter of both blocks

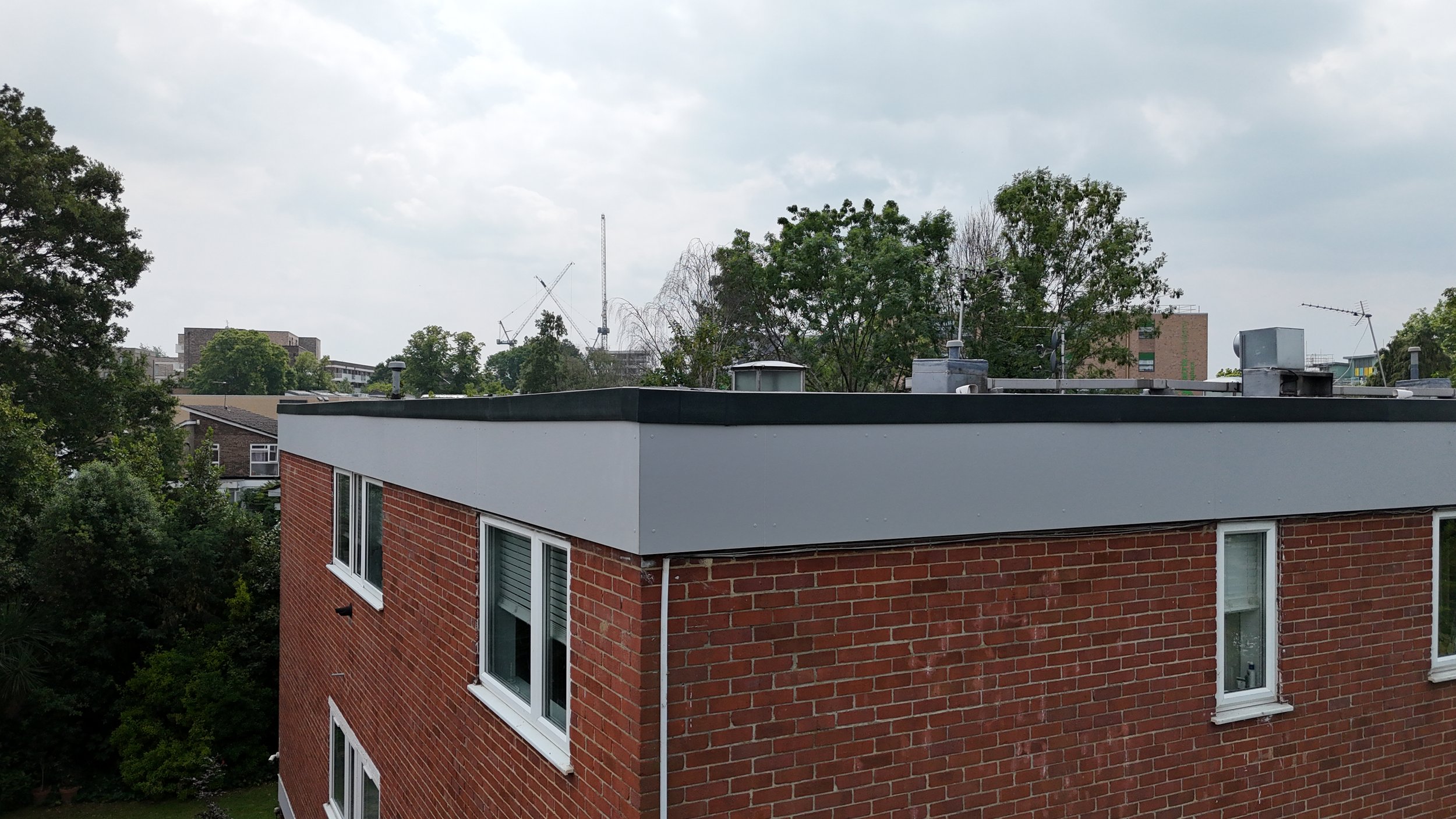

Approximately 200m² of Equitone cladding boards
New flat-roof felt to interface with the new cladding
Repairs to concrete lintels, cills and substrate prior to overcladding

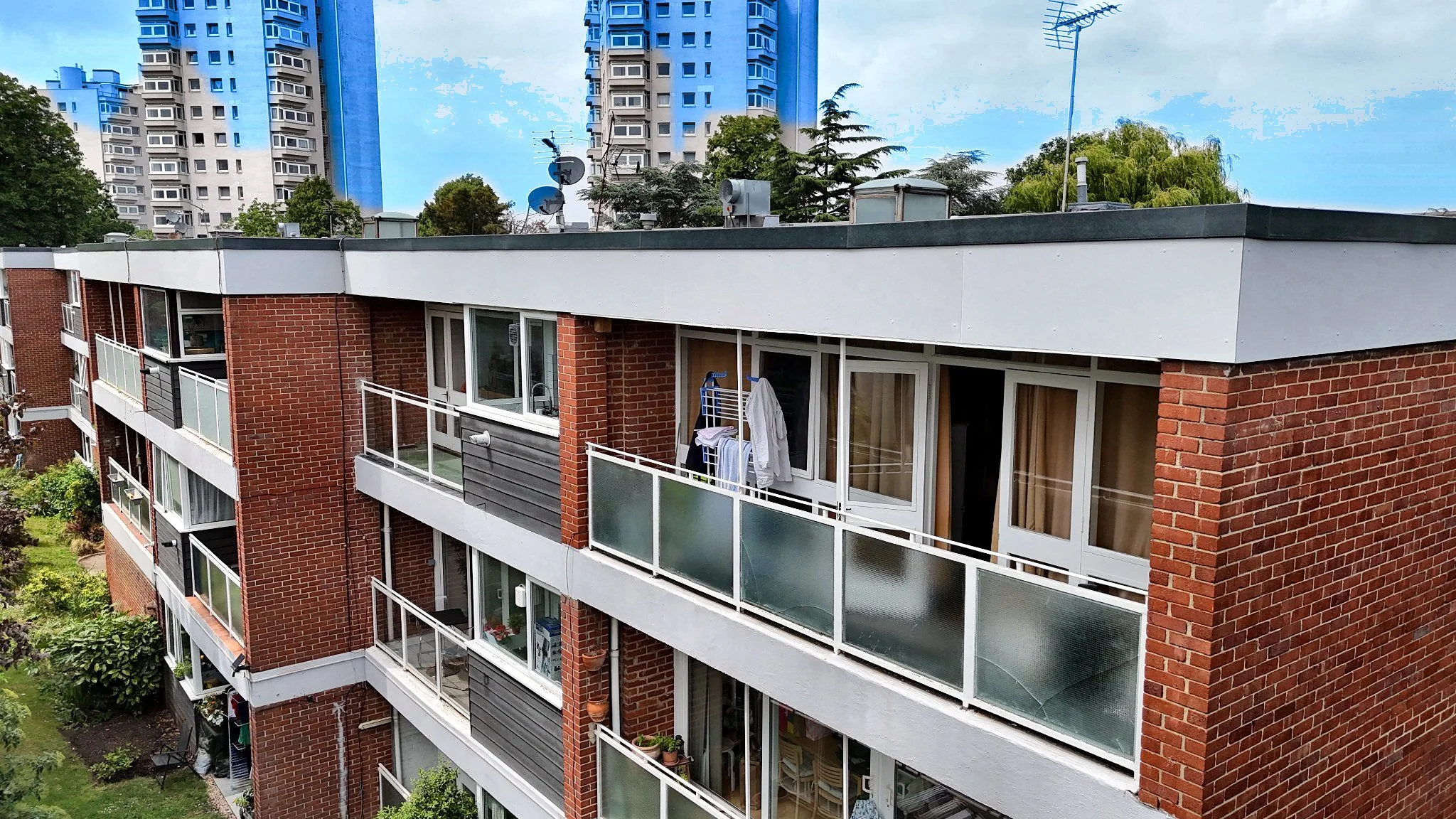

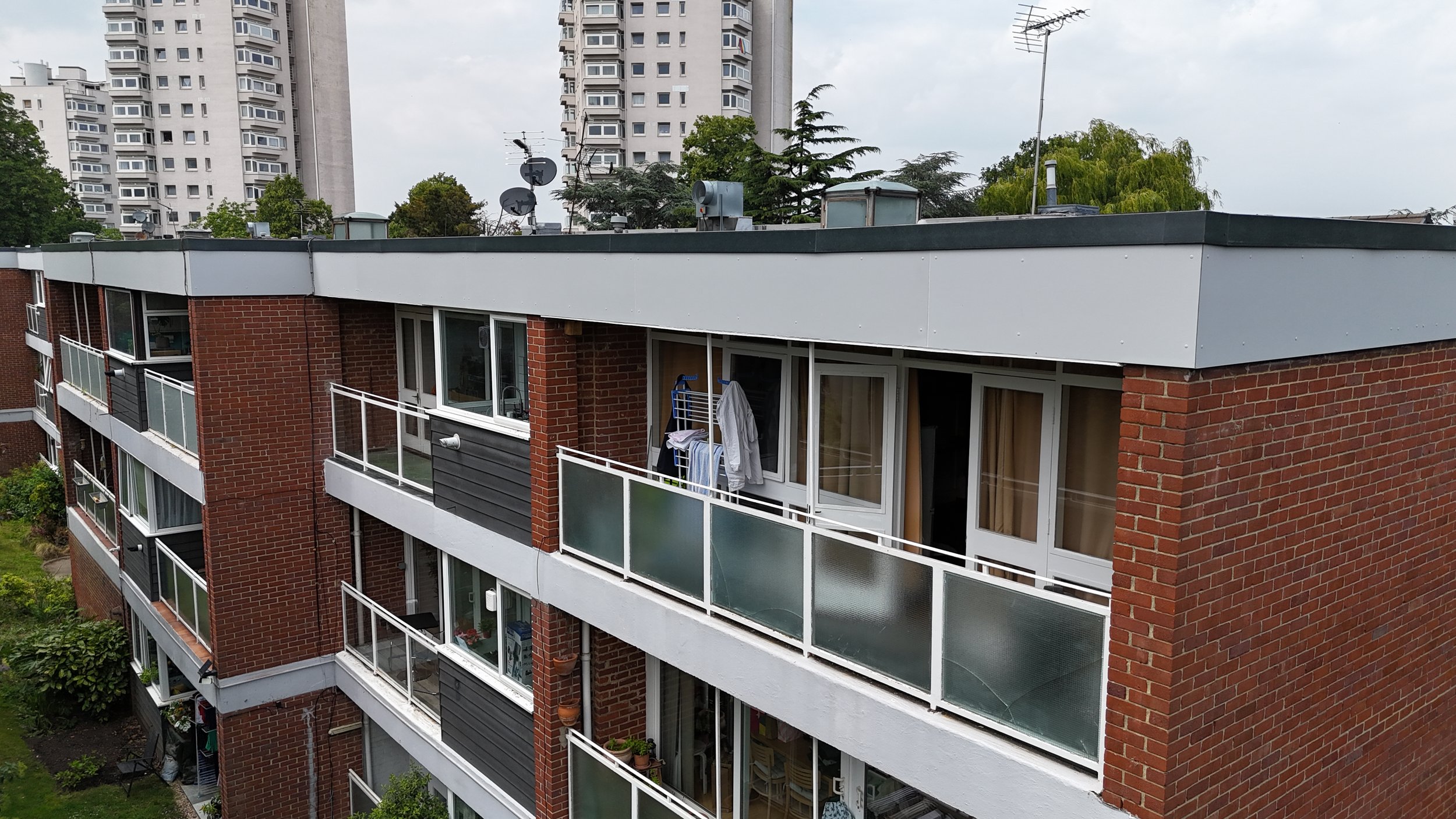

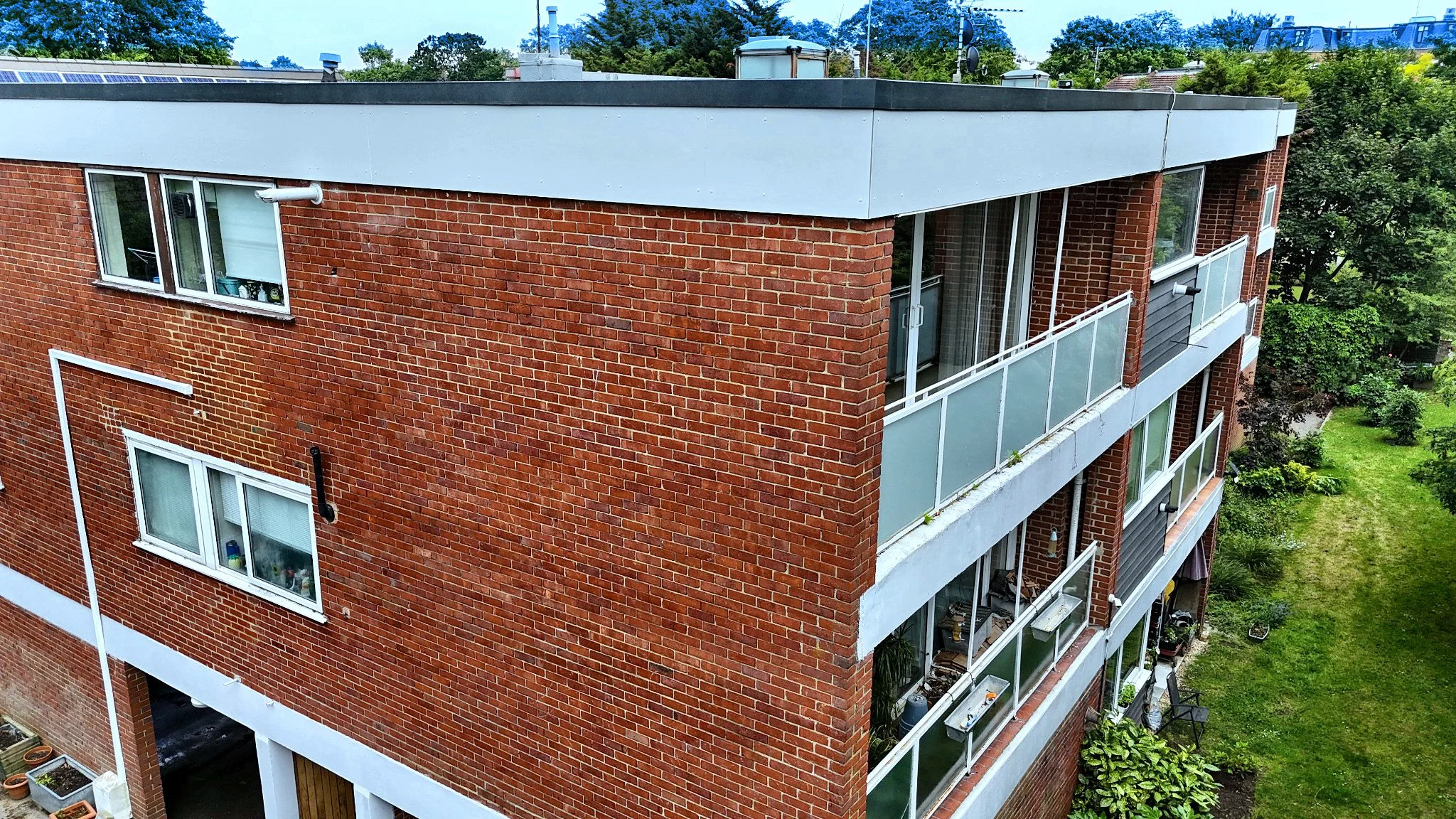

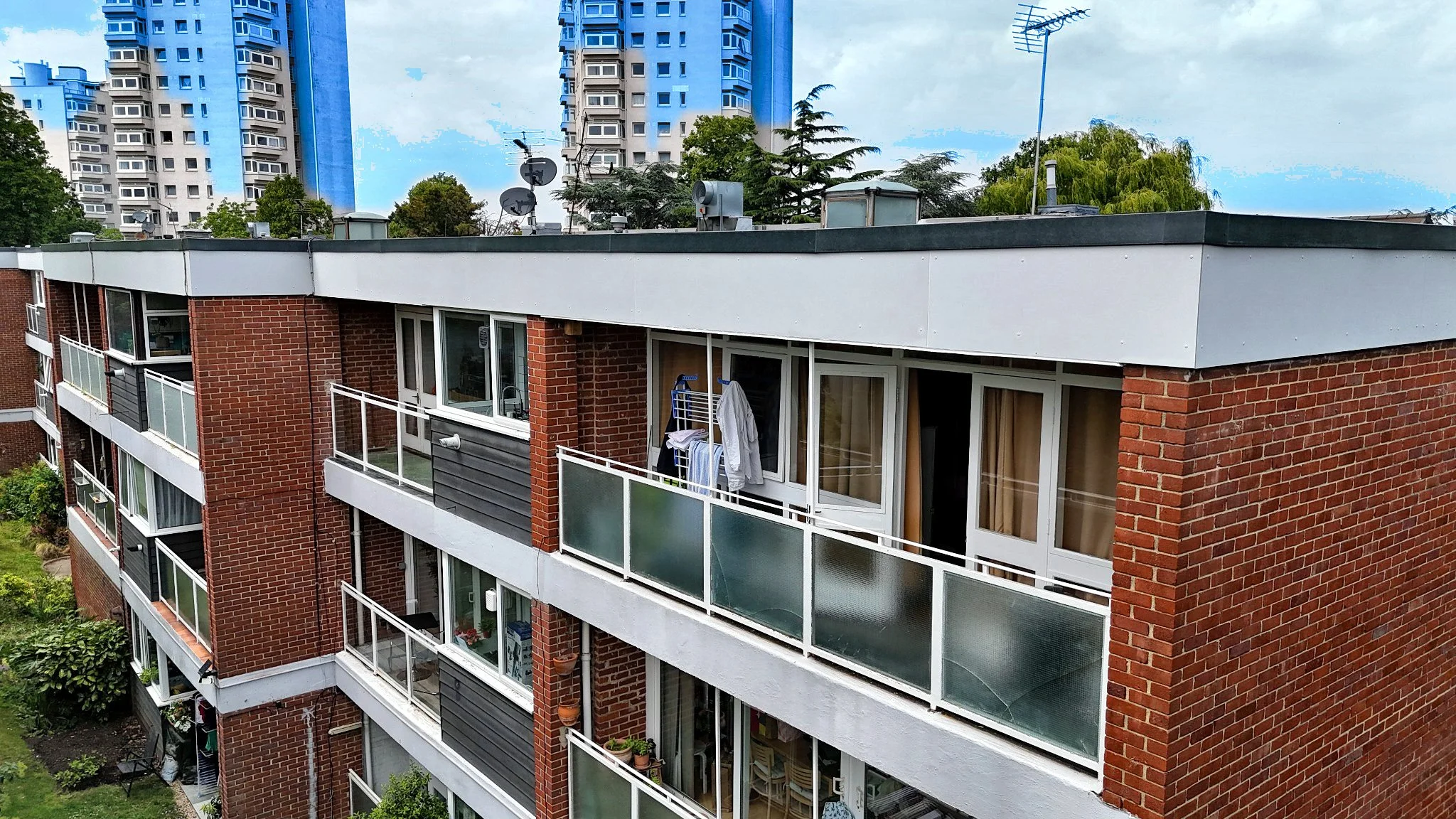

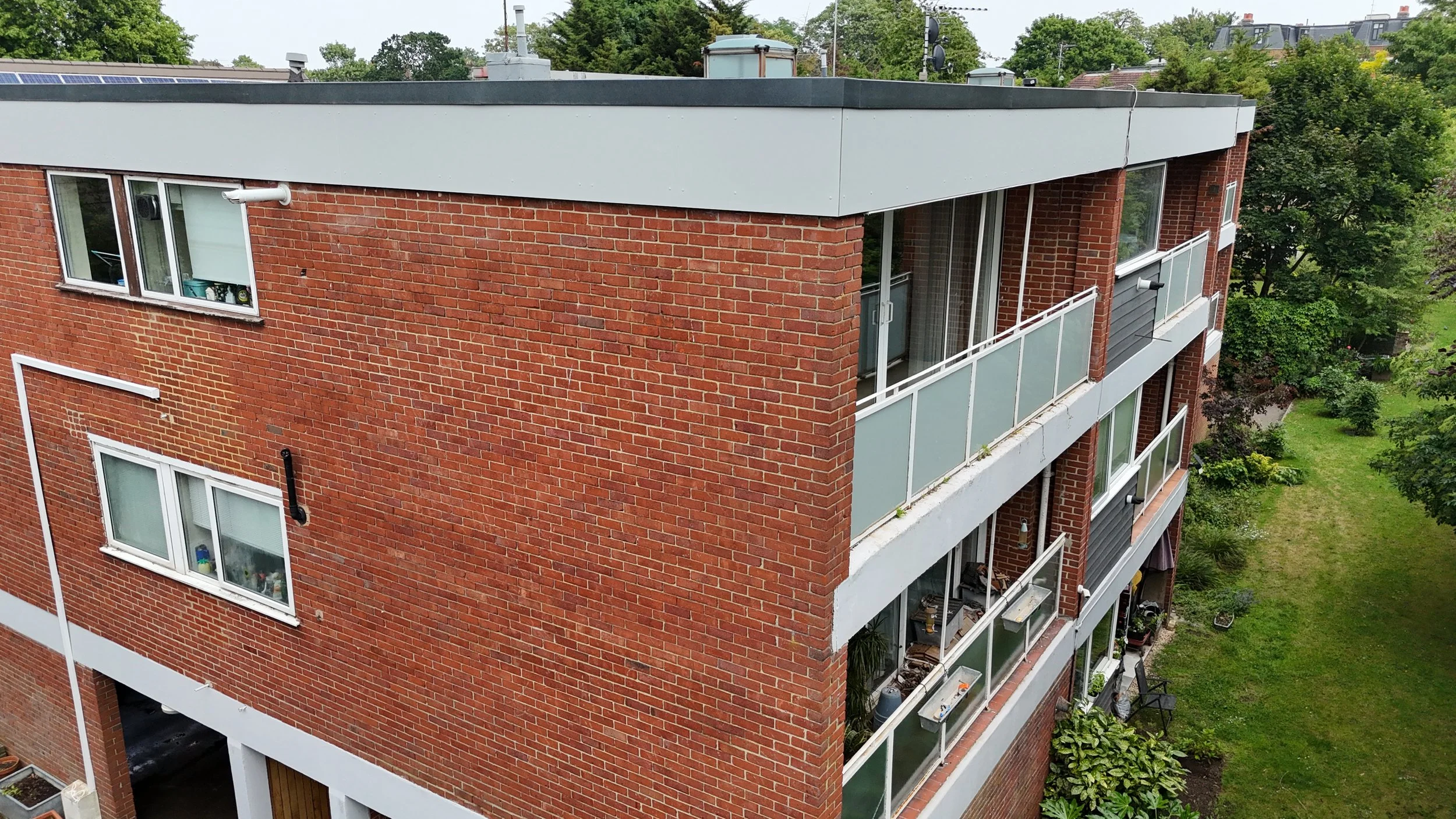

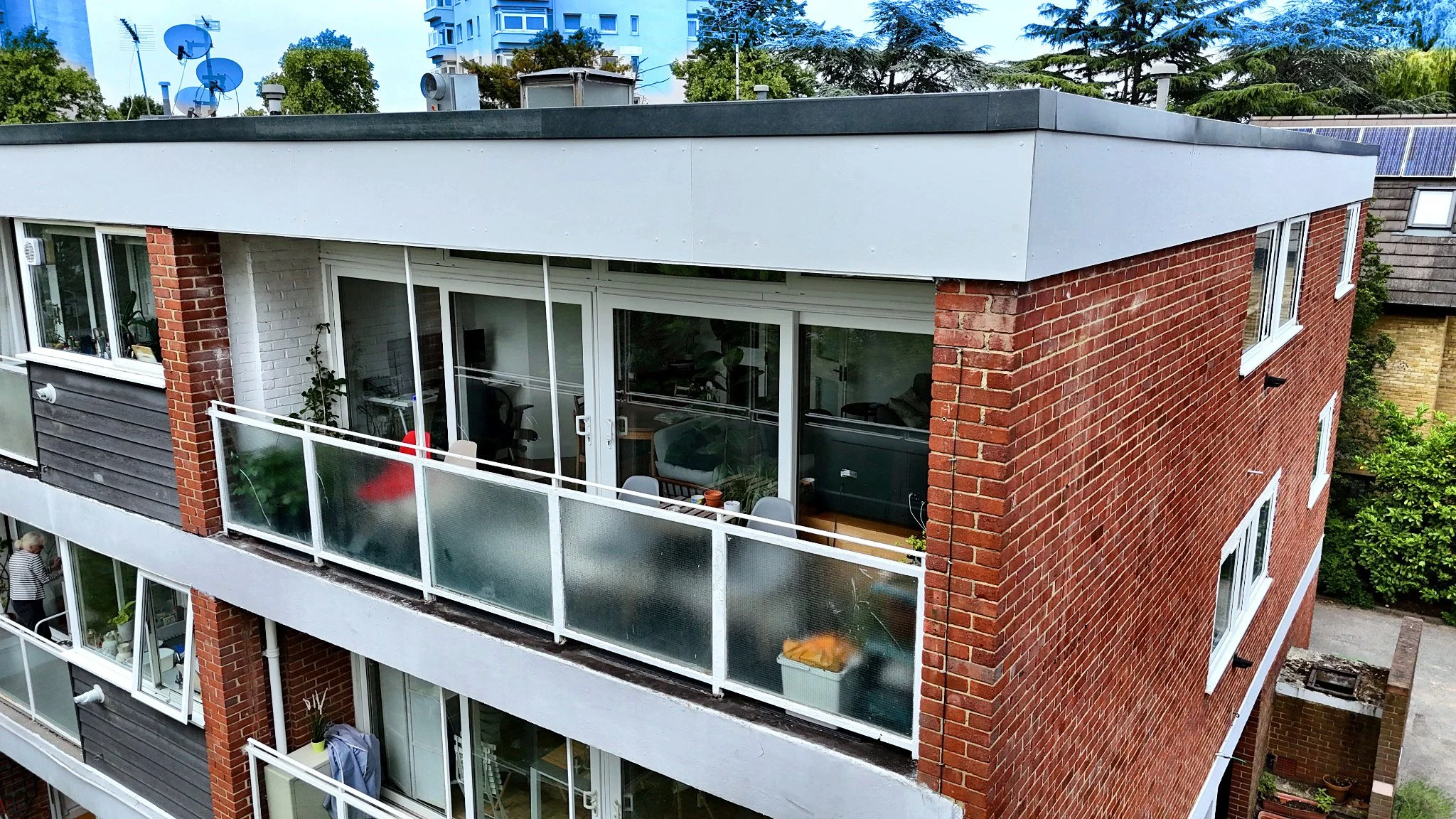

Approximately 140m² of new silicone render to eight high-level balconies

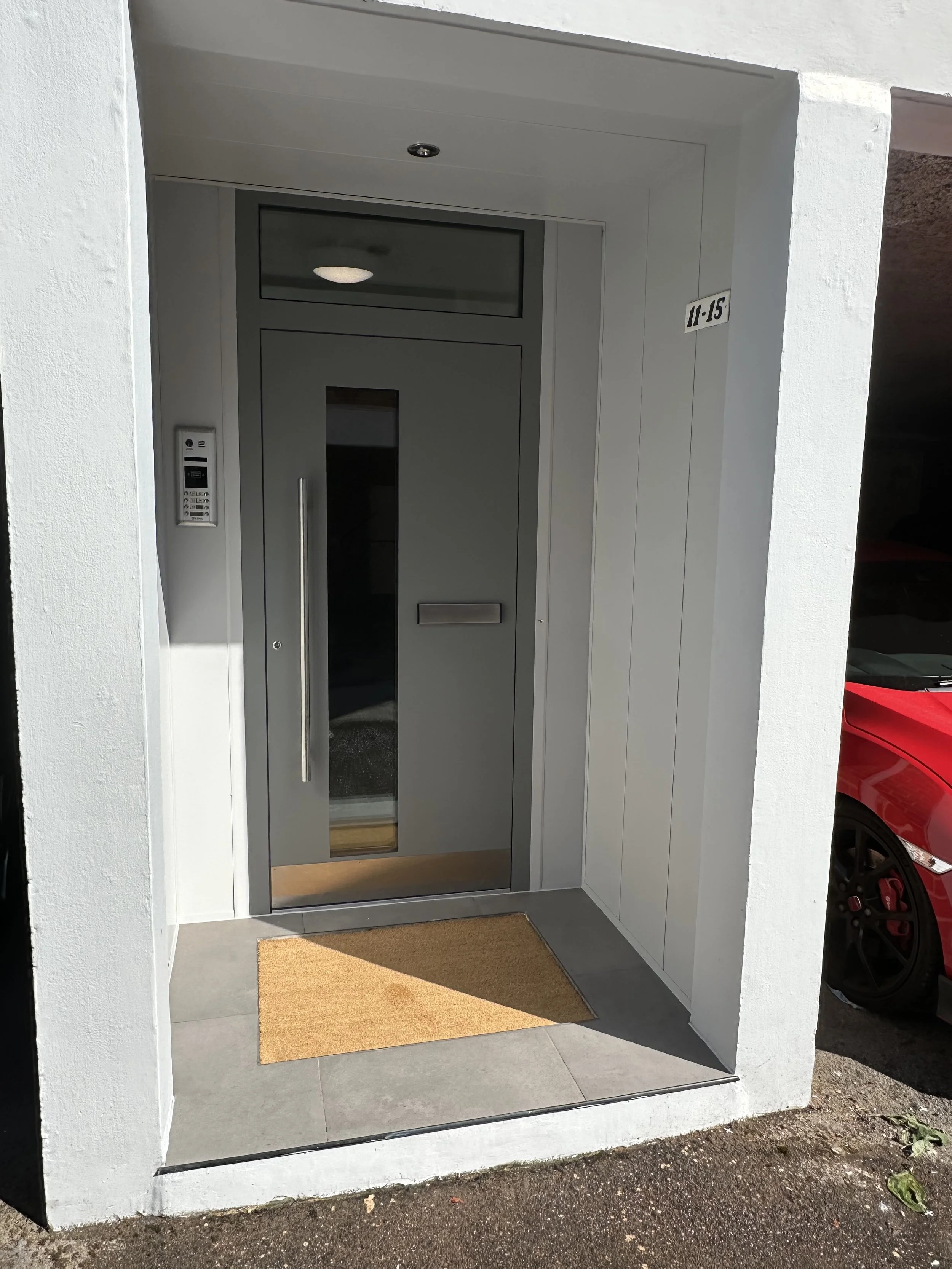

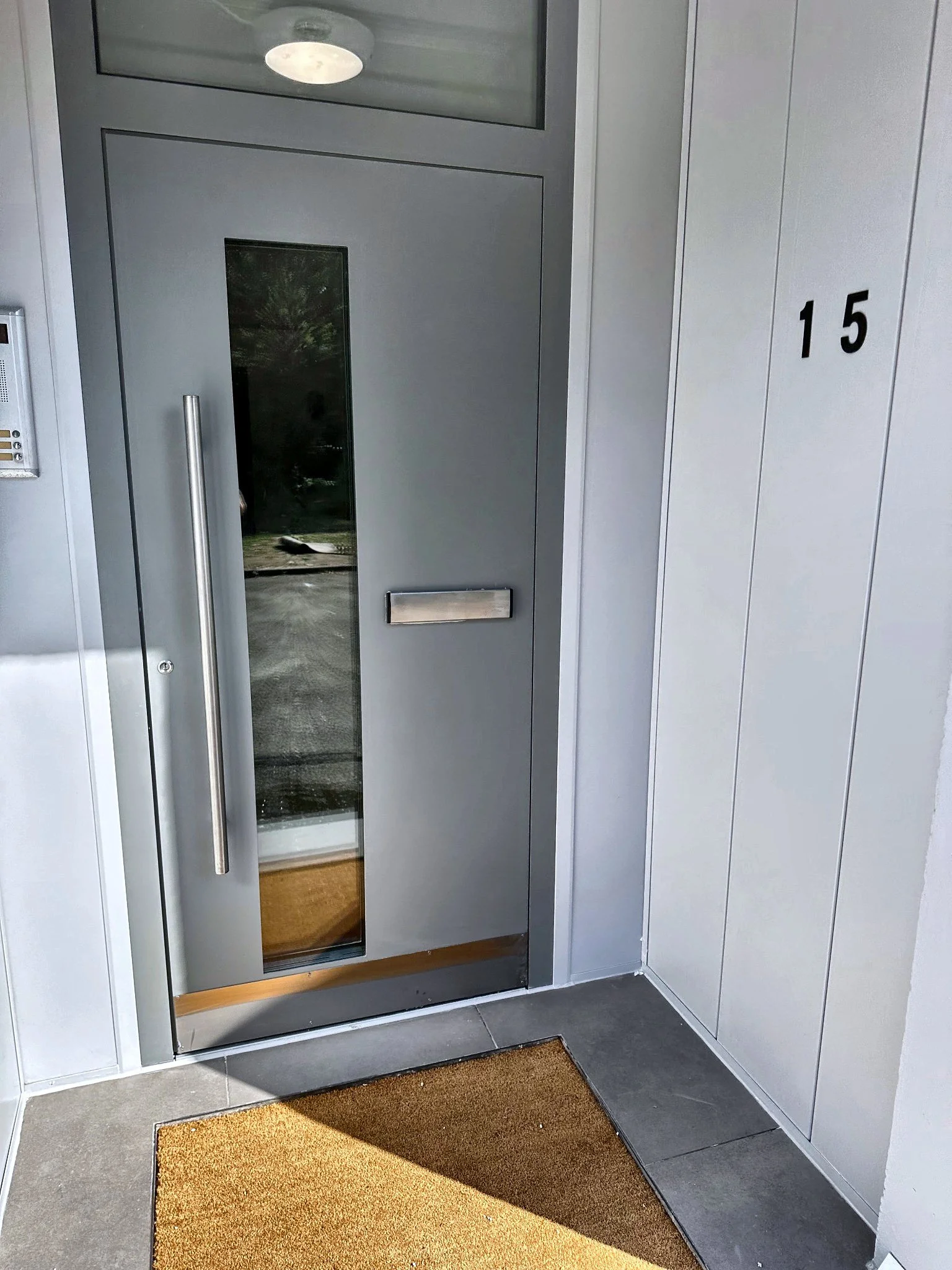

New aluminium entrance doors to both blocks
Arrowhead soffit cladding panels to the entrance canopies
Entrance lobbies re-tiled with new lighting
Approach / Key Challenges
A major asbestos removal project on an occupied residential block, with all asbestos-containing materials removed to strict HSE guidelines under a purpose-designed perimeter scaffold before the new Equitone cladding system and balcony render were installed to resolve long-standing damp ingress. Arden returned for a further, separately commissioned phase to renew the blocks’ entrances and lobbies.
